| Item | Specification |
|---|---|
| Product Name | CAT6A RJ45 8P8C FTP Modular Plug |
| SKU | CN-6H6B-1.1mm |
| Brand | OEM Supported |
| Connector Type | CAT6A RJ45 8P8C |
| Design | Industrial 3-Piece Design |
| Shielding Type | FTP Shielded |
| Cable OD Compatibility | 6.0mm – 6.95mm |
| Contact Material | Pure Copper with Nickel Plating |
| Contact Gold Plating | 50U Gold Plated |
| Housing Material | Pure Copper Nickel-Plated Shield Shell |
| Boot Material | PA66 |
| Flammability Rating | UL 94V-2 |
| Compatible Cable | 22-24AWG Solid or Stranded Twisted Pair Cable |
| Packaging Type | Bag Packing / Box Packing |
| Certifications | UL, CE, RoHS, ISO9001 |
| Operating Temperature | -40°C to +85°C |
| Voltage & Current Rating | 125V AC 1.5A @ 25°C |
| Contact Resistance | Max 20mΩ |
| Insulation Resistance | Min 500MΩ at 100V DC/Minute |
| Withstand Voltage | 1000V AC/Minute Without Breakdown |
| Pull Test | Max 30N |
| Durability Test | Minimum 750 Mating Cycles |
| Environmental Compliance | RoHS, REACH Compliant |
| Application | Suitable for CAT6A Shielded Ethernet Networking Installations |
| Overview | Industrial-grade CAT6A FTP RJ45 modular plug with 3-piece structure, designed for stable termination and high-speed network transmission. Compatible with 6.0-6.95mm Ethernet cables. |
-0.jpg?w=750&h=1627)
Product Description

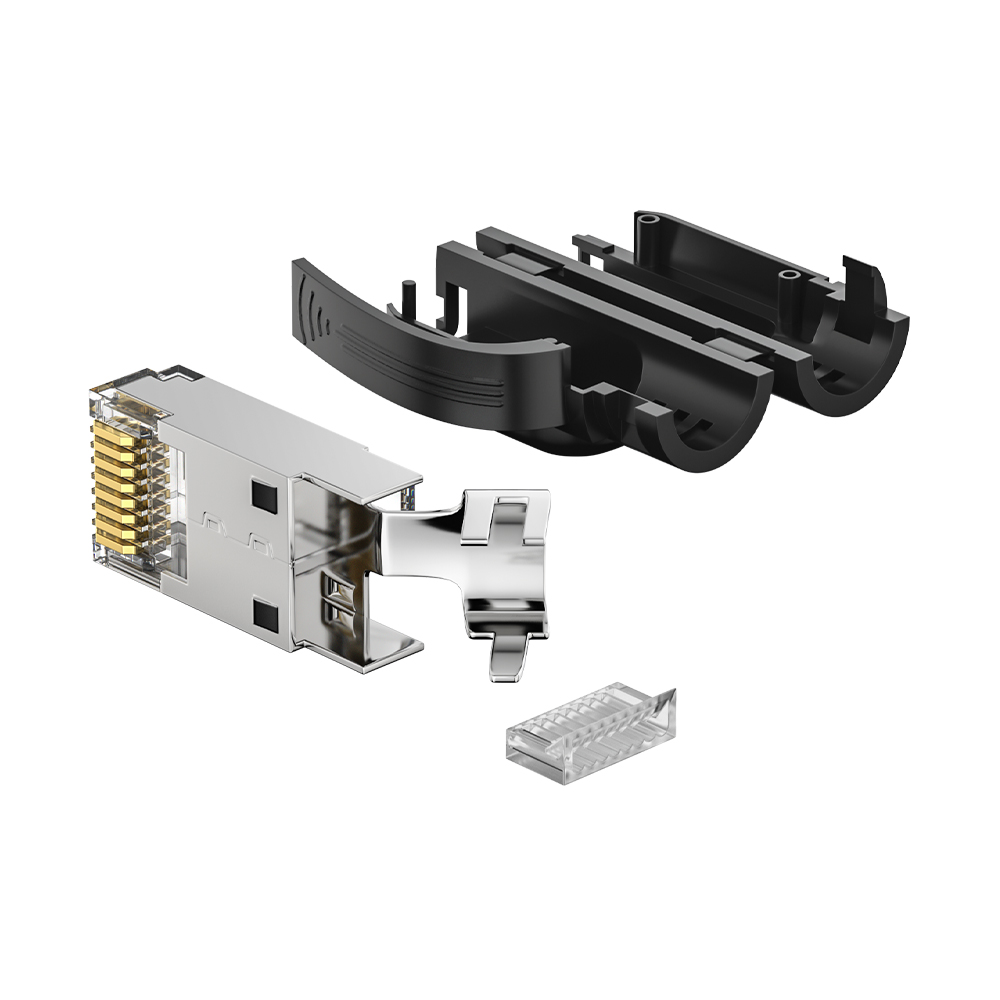

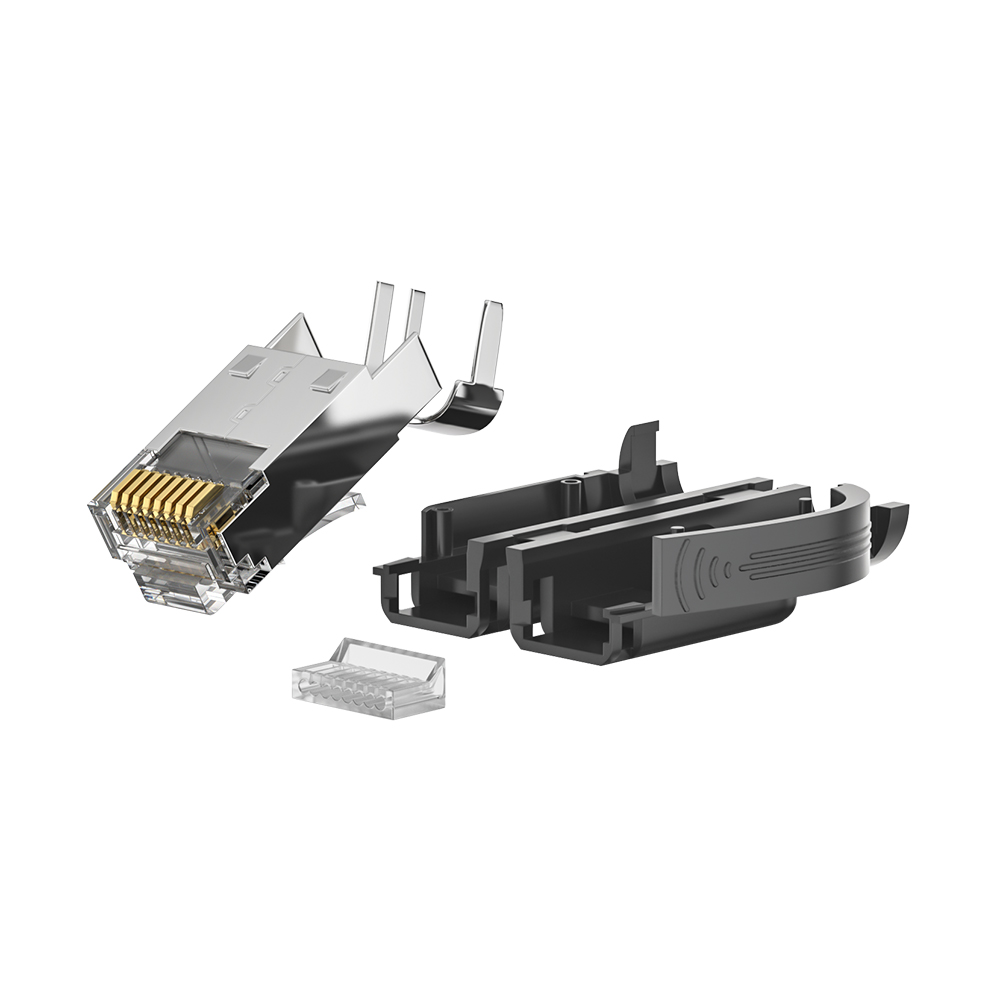

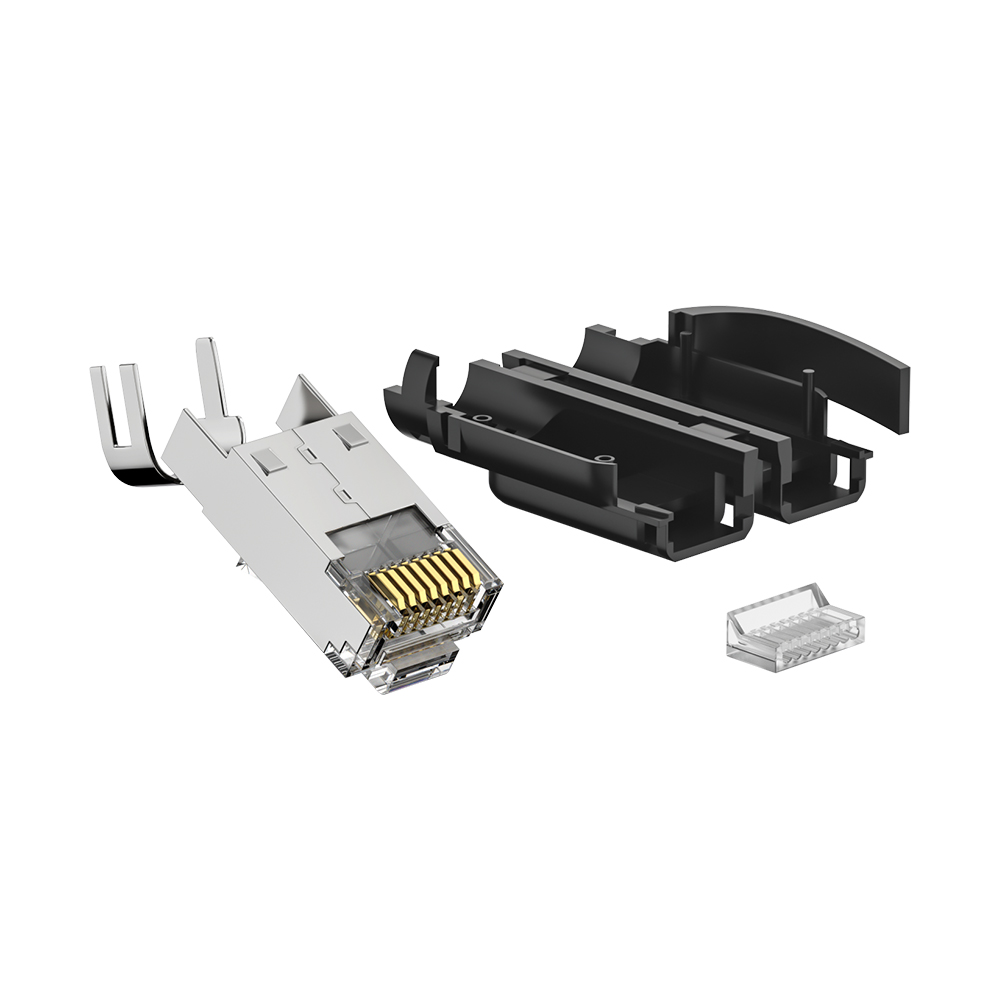

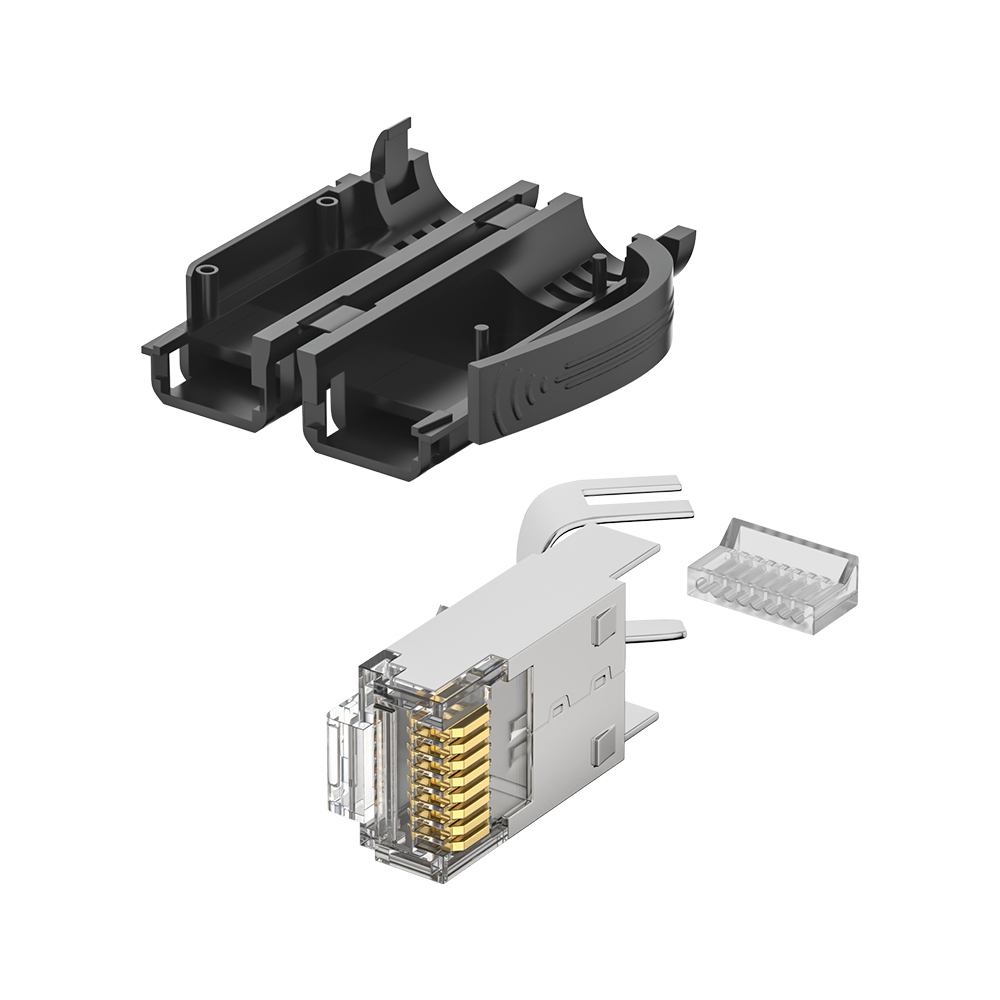

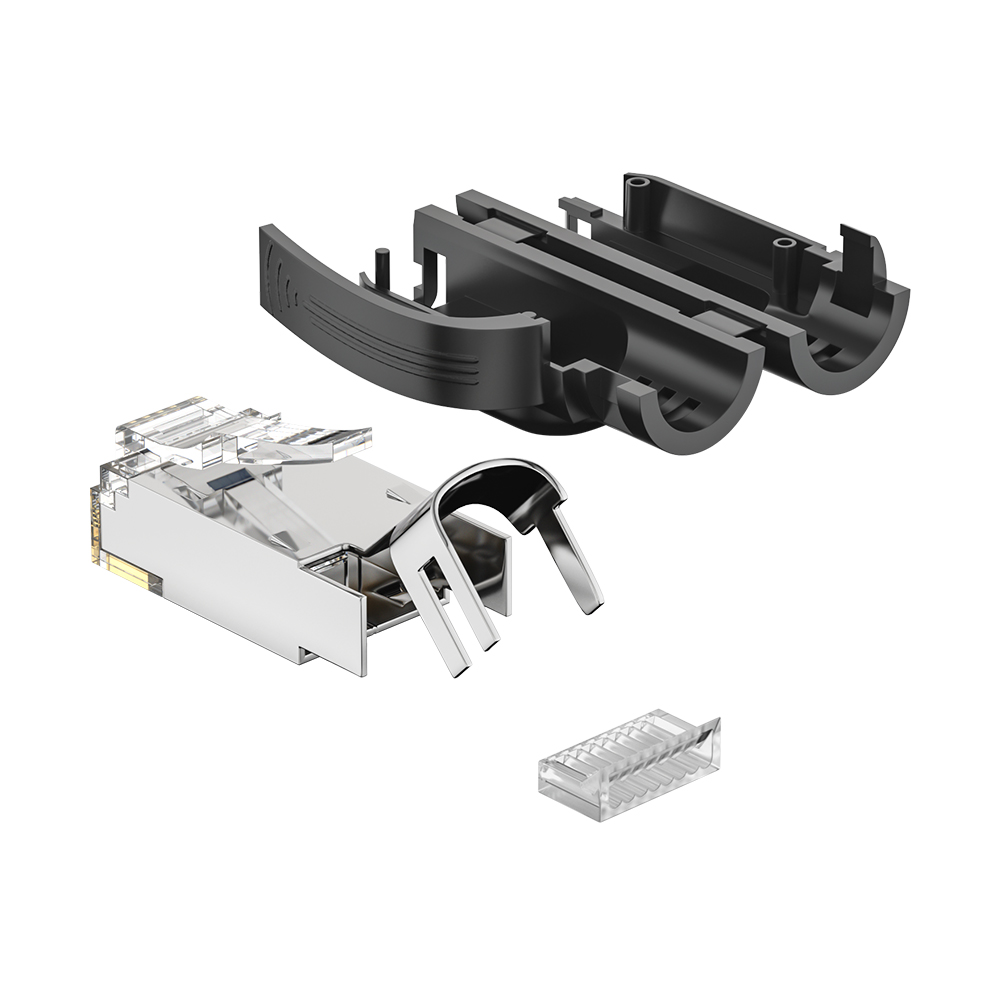

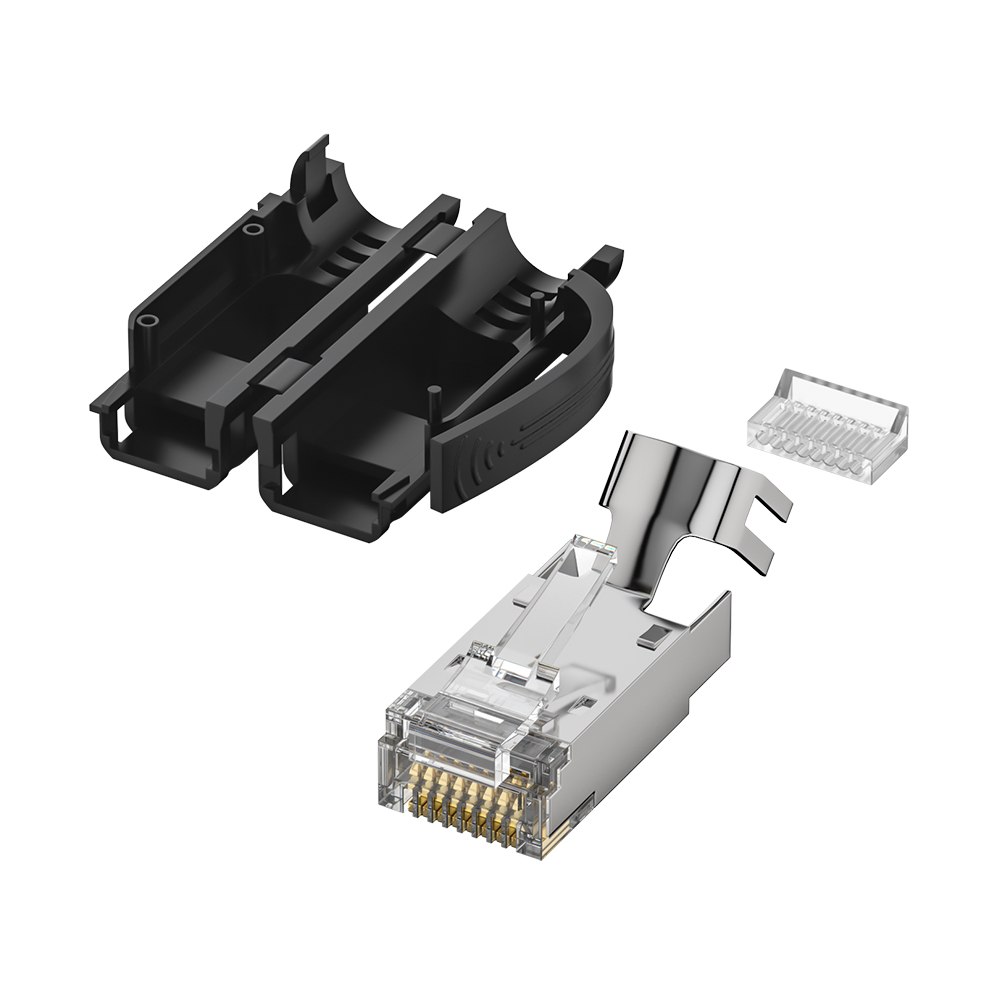

This CAT6A FTP RJ45 8P8C modular plug is designed for professional high-speed Ethernet networking applications. It features a durable 3-piece shielded structure with a nickel-plated copper housing to ensure excellent EMI protection and signal stability.
The connector is equipped with 50U gold-plated contact points to enhance conductivity and reduce signal loss, ensuring long-term reliable performance in demanding network environments. The 1.1mm precision wire hole supports 22–24AWG Ethernet cables, making it compatible with a wide range of structured cabling systems.
Built with PA66 flame-retardant material (UL 94V-2), the plug delivers strong mechanical strength and heat resistance. It has passed rigorous testing including 750 mating cycles, pull strength up to 30N, and high-voltage resistance up to 1000V AC.
Fully compliant with UL, CE, RoHS, and ISO9001 standards, this connector is ideal for enterprise networks, data centers, industrial cabling systems, and OEM/ODM applications requiring stable and high-performance Ethernet connections.
