7. Product Specifications Table
| Item | Specification |
|---|---|
| SKU | CN-6H6B-IND1.0 |
| Product Name | CAT6 RJ45 8P8C FTP Industrial Modular Plug |
| Brand | OEM Supported |
| Connector Type | CAT6 RJ45 8P8C |
| Shielding Type | FTP |
| Design | Industrial 4-Piece Reinforced Structure |
| Cable OD Compatibility | 0.75–1.0mm Conductor / 22–24AWG Cable |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 50U Gold Plated |
| Housing Material | PC + Copper Shield Shell |
| Flame Rating | UL 94V-2 |
| Packaging Type | Bag / Box |
| Certifications | UL, CE, RoHS, ISO9001 |
| Operating Temperature | -40°C to +85°C |
| Voltage & Current Rating | 125V AC 1.5A @ 25°C |
| Contact Resistance | Max 20mΩ |
| Insulation Resistance | Min 500MΩ (100V DC/min) |
| Withstand Voltage | 1000V AC/min |
| Pull Test | Max 30N |
| Durability Test | ≥750 Mating Cycles |
| Environmental Compliance | RoHS, REACH |
| Application | Industrial CAT6 Ethernet Networking |
| Overview | Reinforced CAT6 FTP RJ45 modular plug with 1.0mm precision wire hole, designed for industrial high-reliability networking performance. |
.jpg?w=750&h=1627)
Product Description

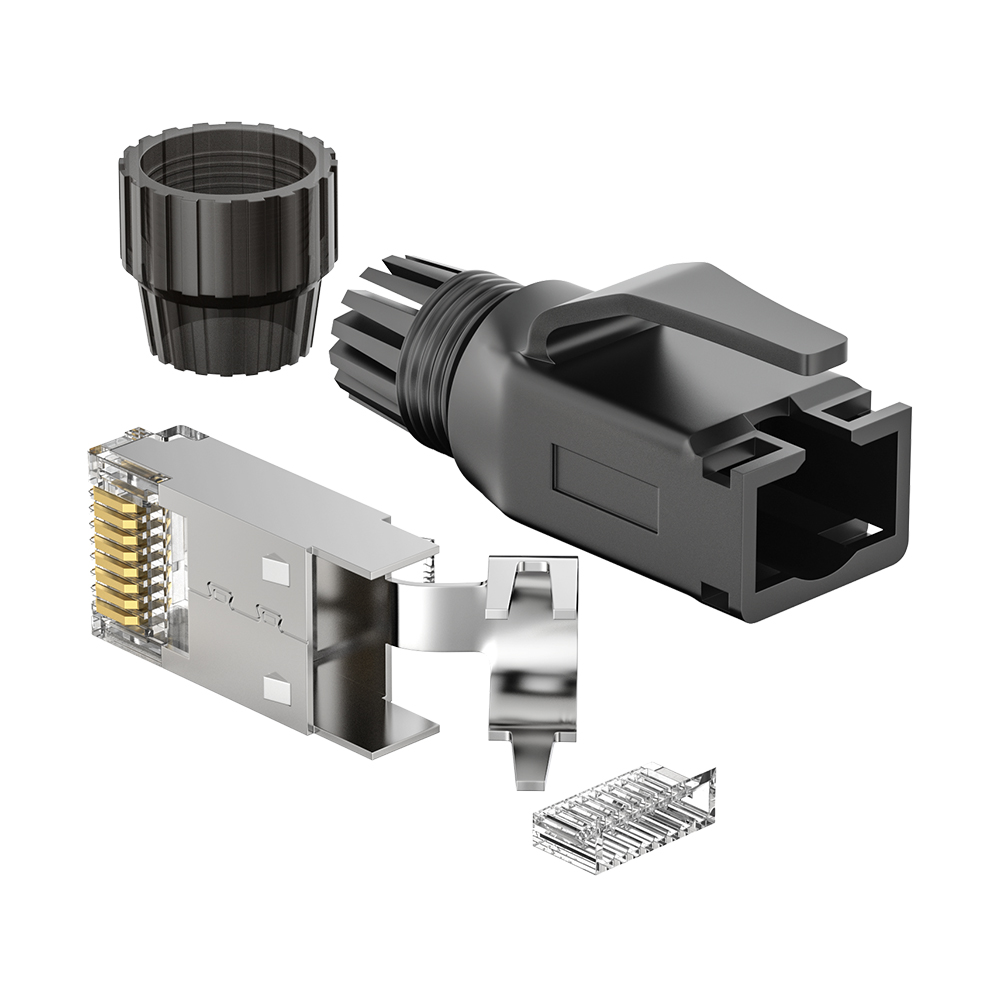

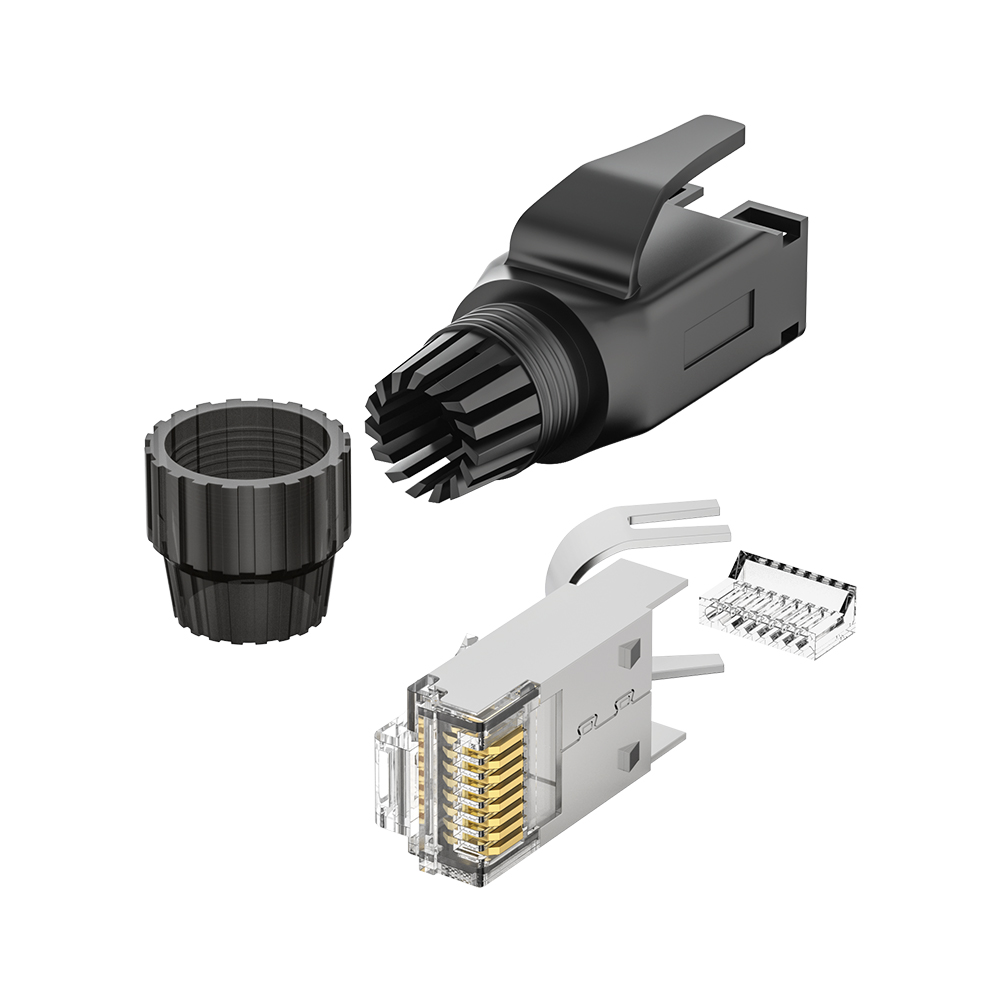

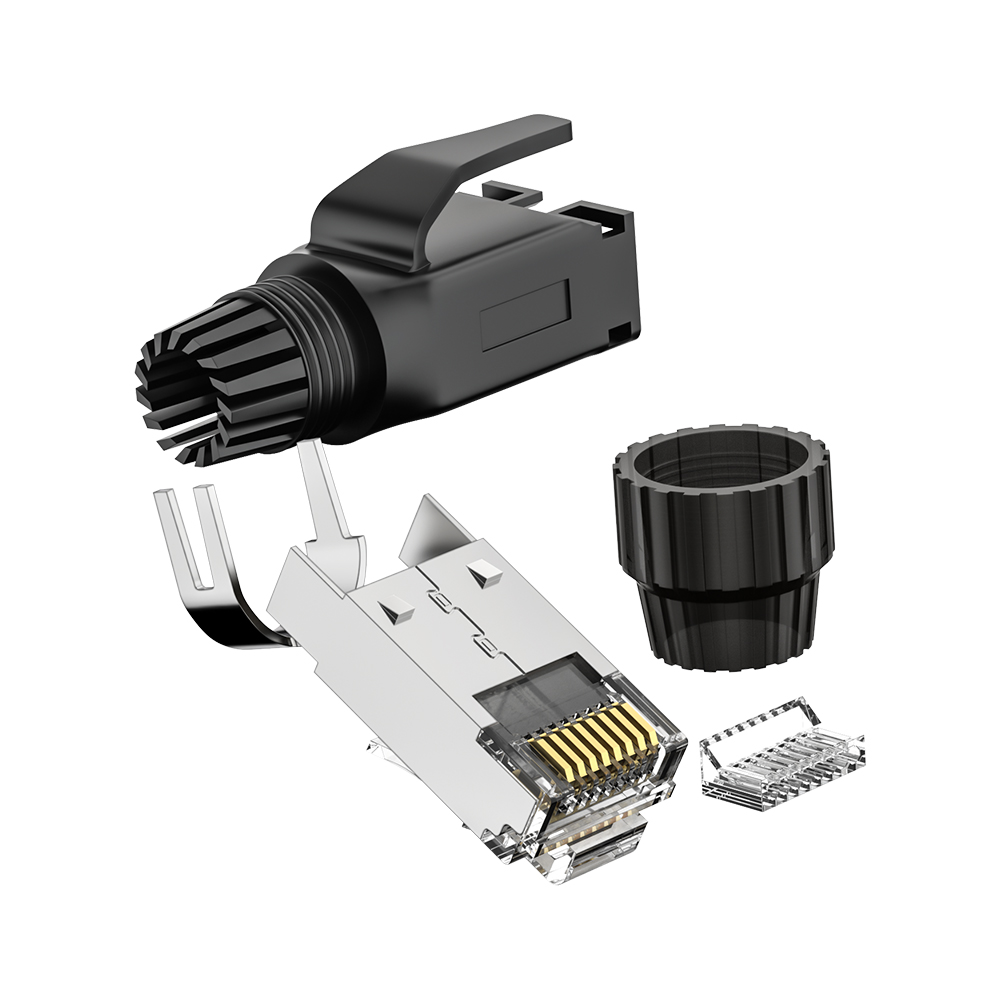

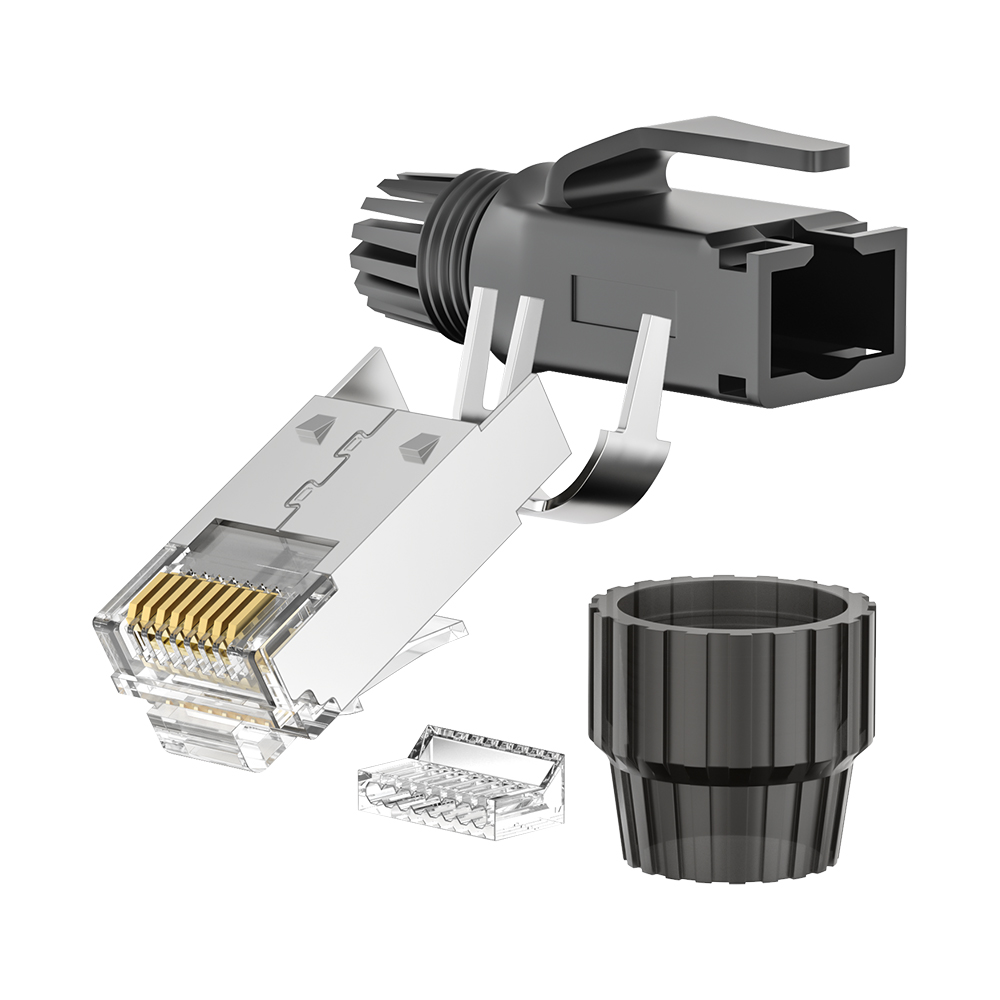

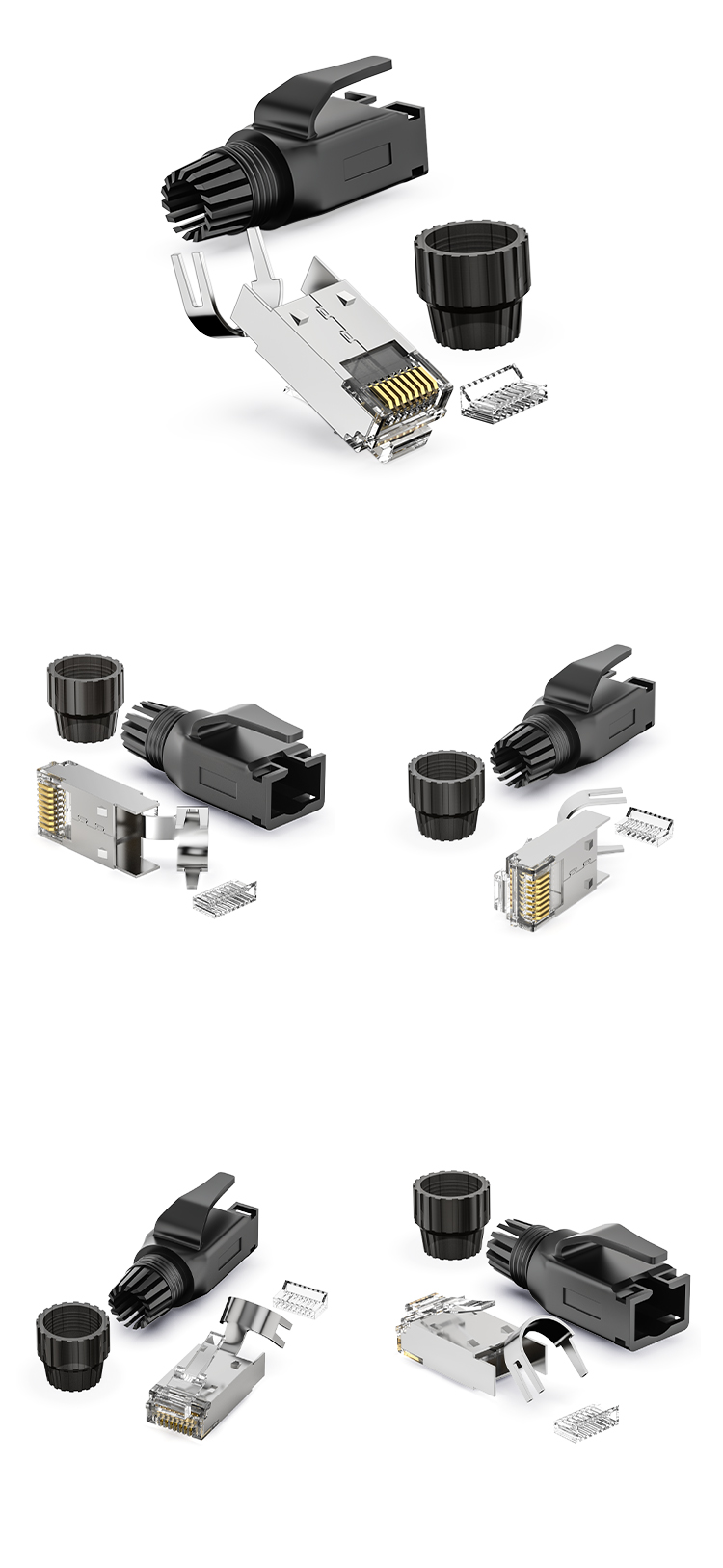

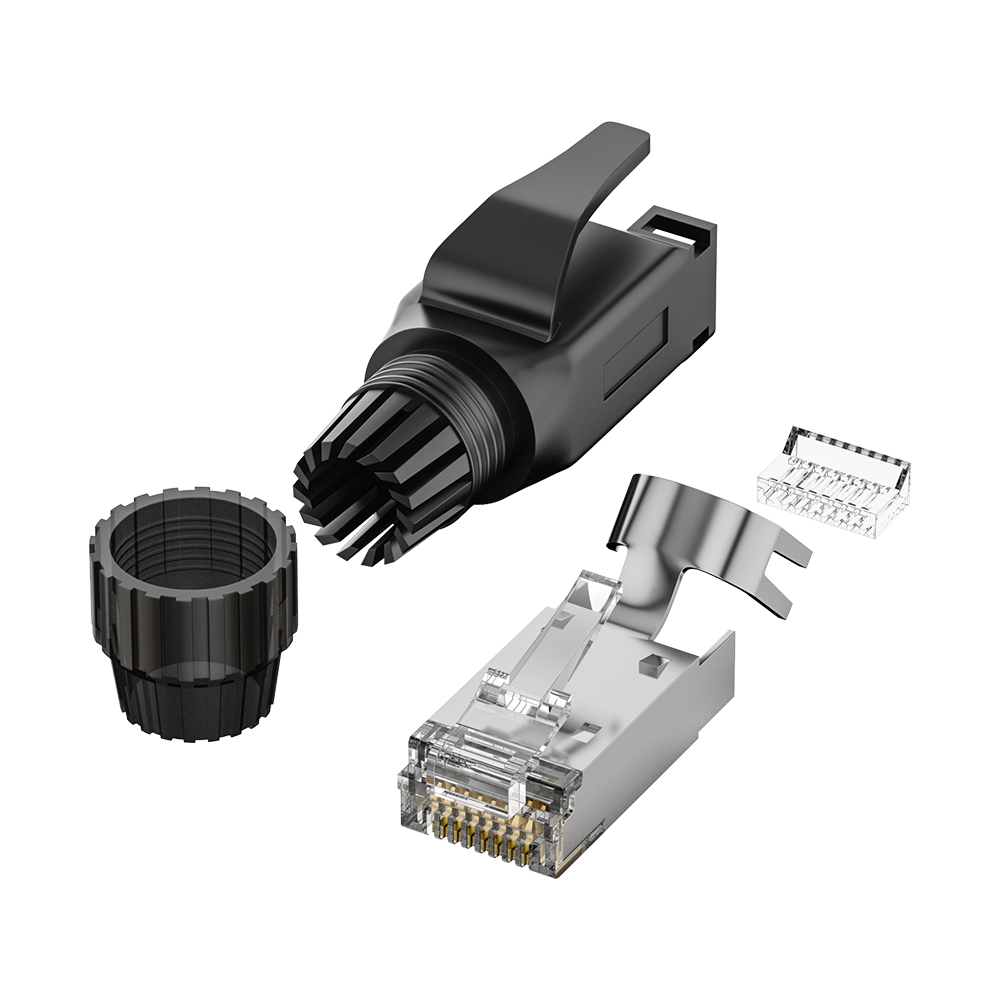

This CAT6 FTP RJ45 industrial modular plug is designed for demanding networking environments requiring higher mechanical strength and stable electrical performance. It adopts a reinforced 4-piece structure with a precision 1.0mm wire hole, supporting conductor diameters from 0.75mm to 1.0mm.
The connector features 50U gold-plated contacts and brass 3-prong terminals to ensure excellent conductivity, reduced signal loss, and long-term durability. The PC housing combined with a copper shield shell provides strong EMI protection, making it suitable for industrial networking systems and harsh installation environments.
With full compliance to UL, CE, RoHS, and ISO9001 standards, this connector delivers reliable performance across temperature ranges from -40°C to +85°C. It is tested for 750 mating cycles, 30N pull strength, and 1000V AC withstand voltage, ensuring stable operation in professional network installations.
