| Item | Specification |
|---|---|
| SKU | CN-102M2 |

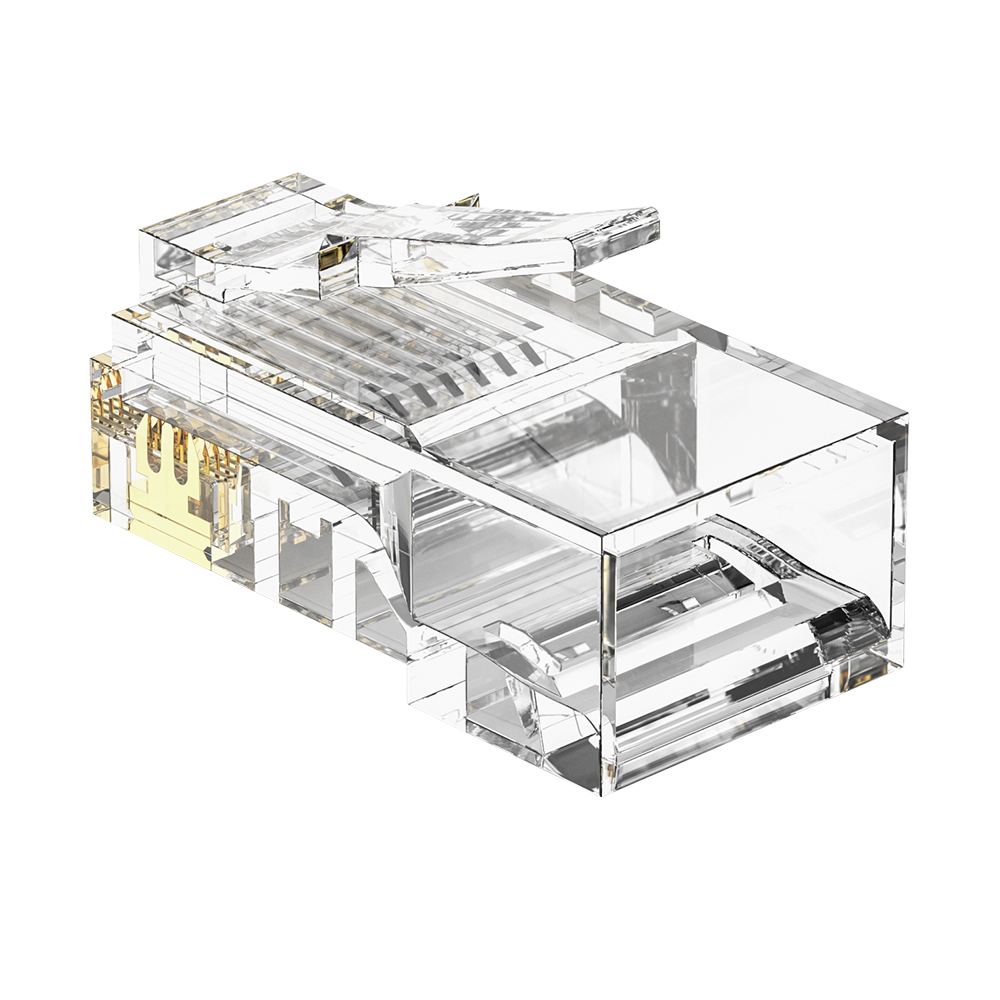

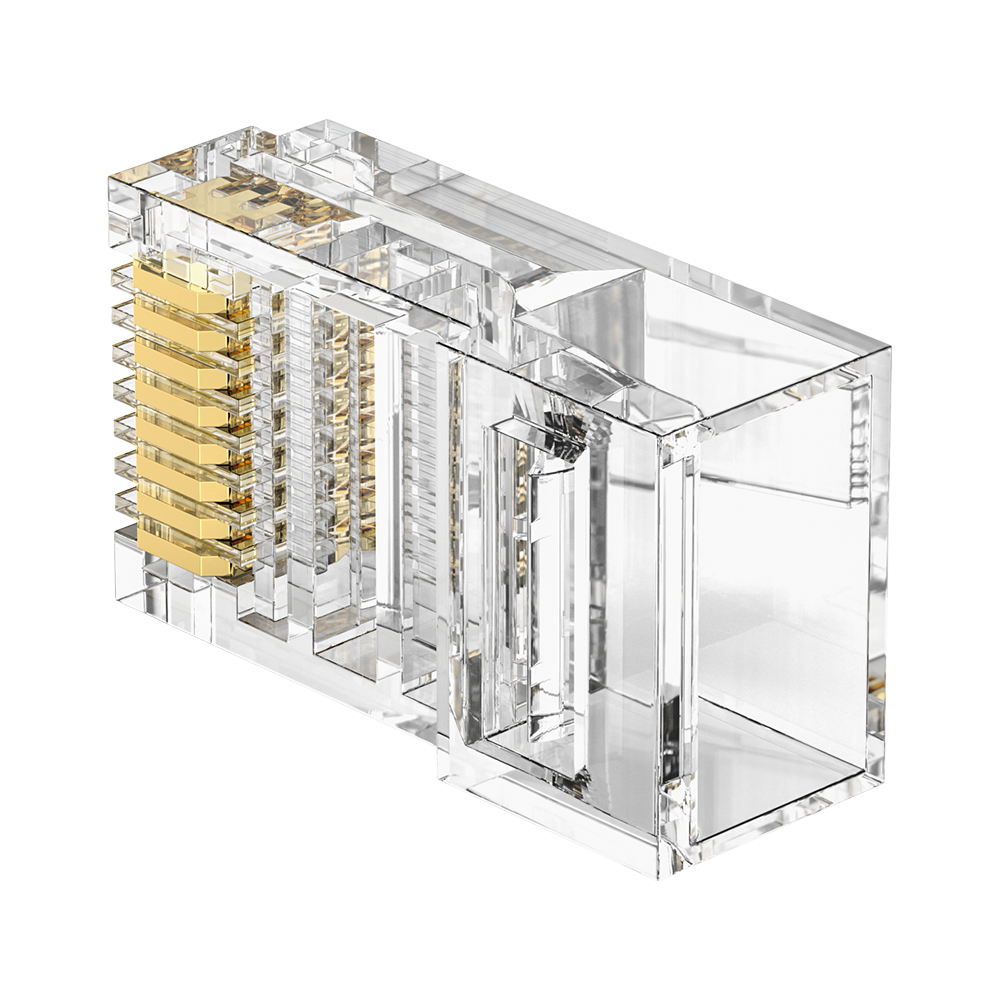

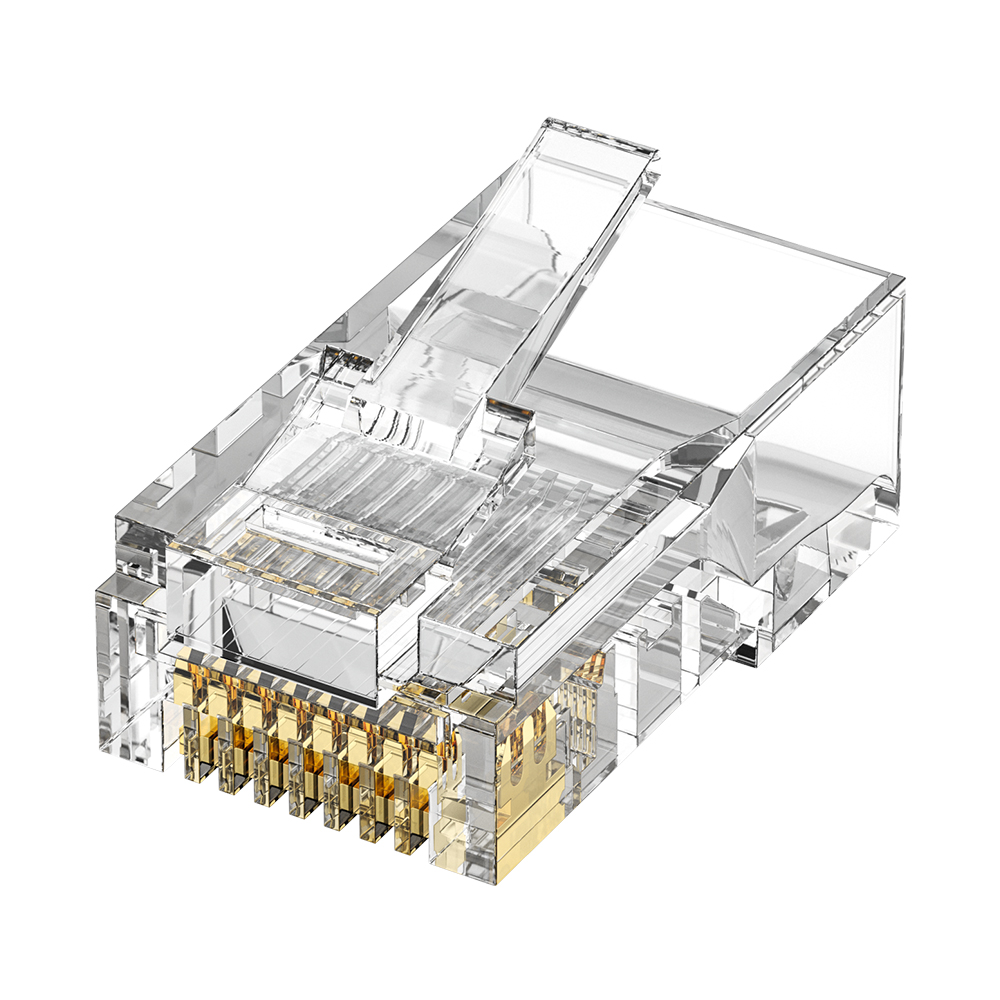

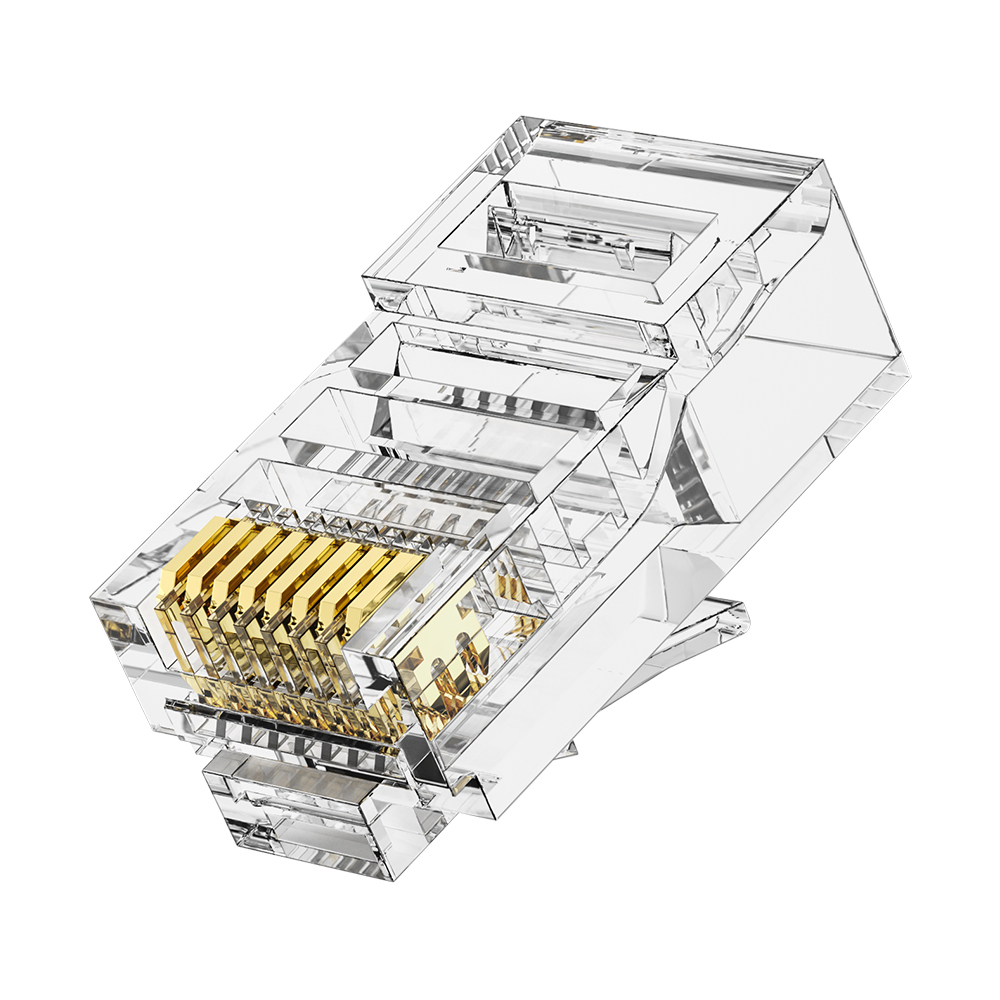

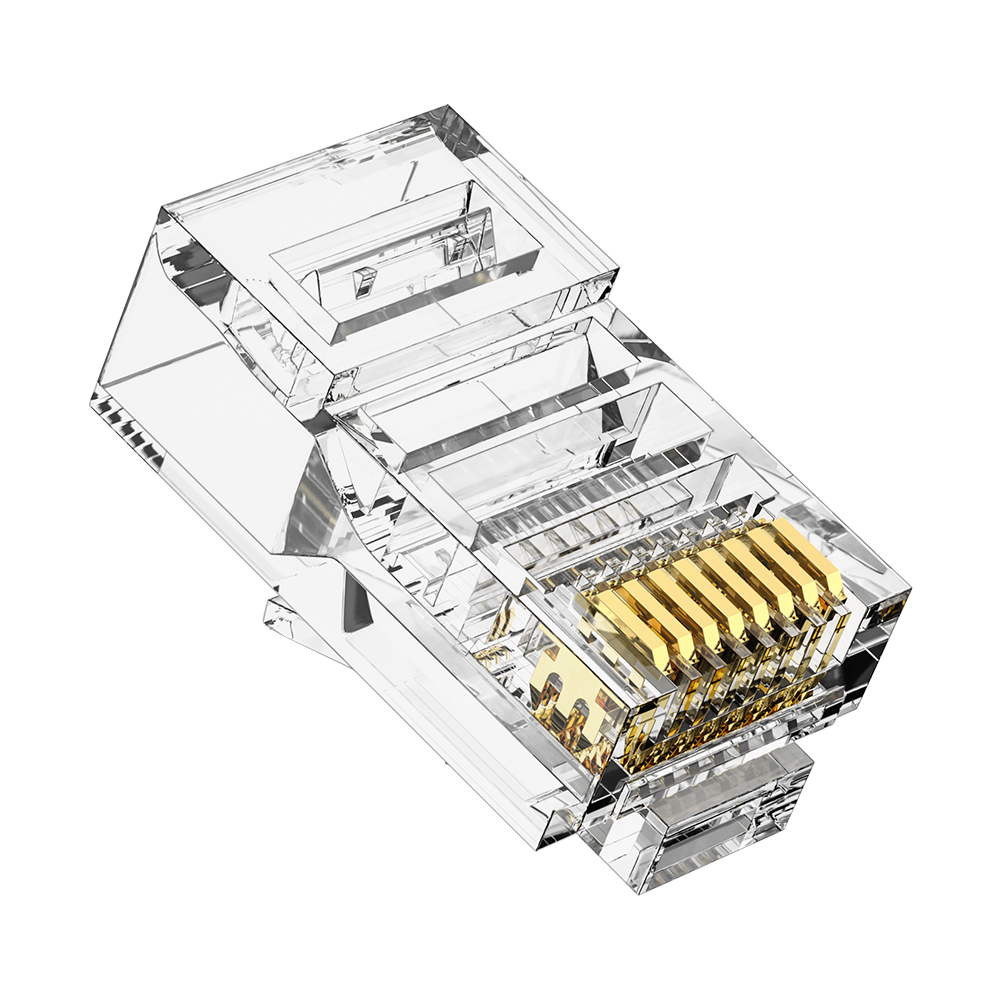

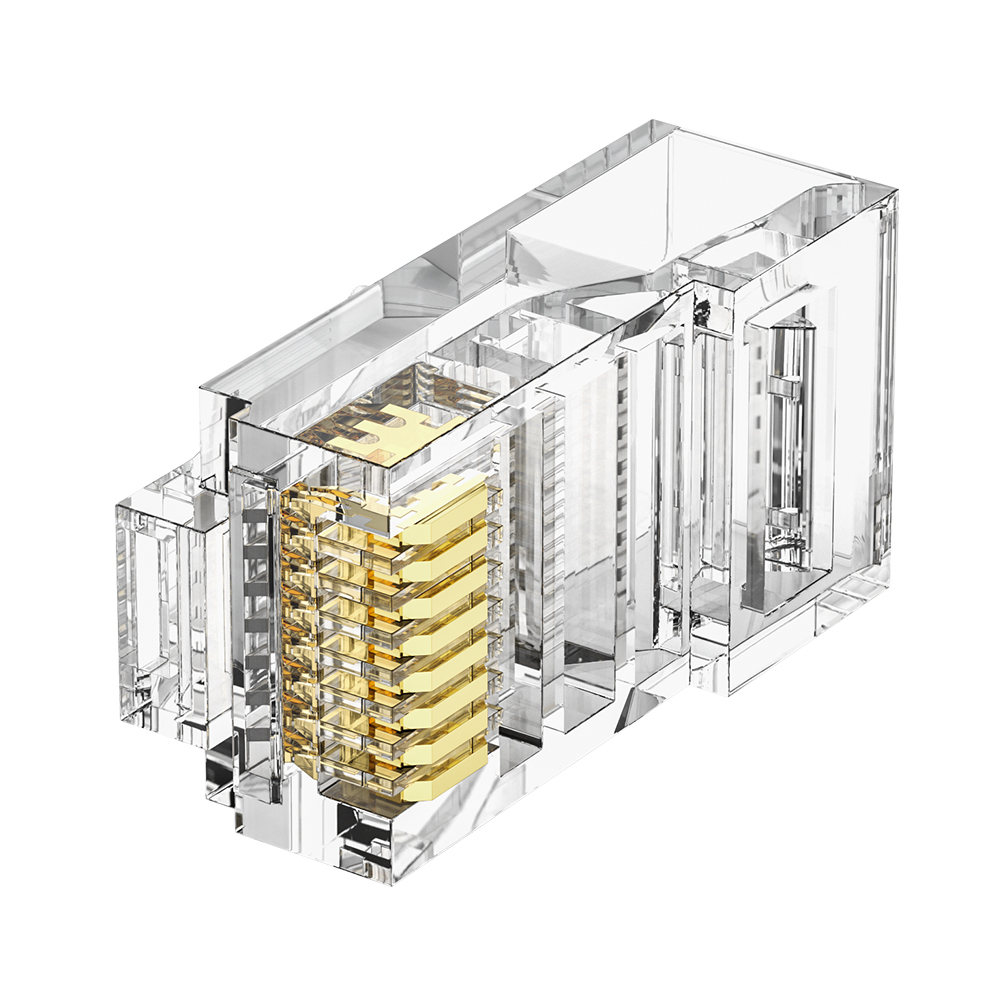

| Product Name | CAT5E RJ45 8P8C UTP Modular Plug |
| Brand | OEM Supported |
| Connector Type | CAT5E RJ45 8P8C |
| Shielding Type | UTP |
| Design | Square Cable Entry Design |
| Contact Material | Brass 3-Prong Contact |
| Contact Plating | 1U Gold Plated |
| Housing Material | PC |
| Flame Rating | UL 94V-2 |
| Conductor Range | 0.75–1.0mm |
| Compatible Cable | CAT5E 24AWG Ethernet Cable |
| Compatible Boot | CAT6 Snap-On Boot Compatible |
| Packaging Type | Bag / Box |
| Certifications | UL, CE, RoHS, ISO9001 |
| Operating Temperature | -40°C to +125°C |
| IP Rating | IP20 |
| Electrical Rating | 250V AC, Max 2A |
| Withstand Voltage Test | <0.5A, 1000V DC / 1 Minute |
| Insulation Resistance | >500MΩ at 1000V DC / 1 Minute |
| Contact Resistance | ≤20mΩ |
| Pull Test | ≥89N (20 lbs) for 1 Minute |
| Durability Test | ≥2000 Mating Cycles |
| Environmental Compliance | RoHS, REACH |
| Application | CAT5E Ethernet Network Cabling |
| Overview | CAT5E RJ45 UTP modular plug with square entry design, compatible with CAT6 snap-on boots and designed for 24AWG Ethernet cable installations. |
Product Description

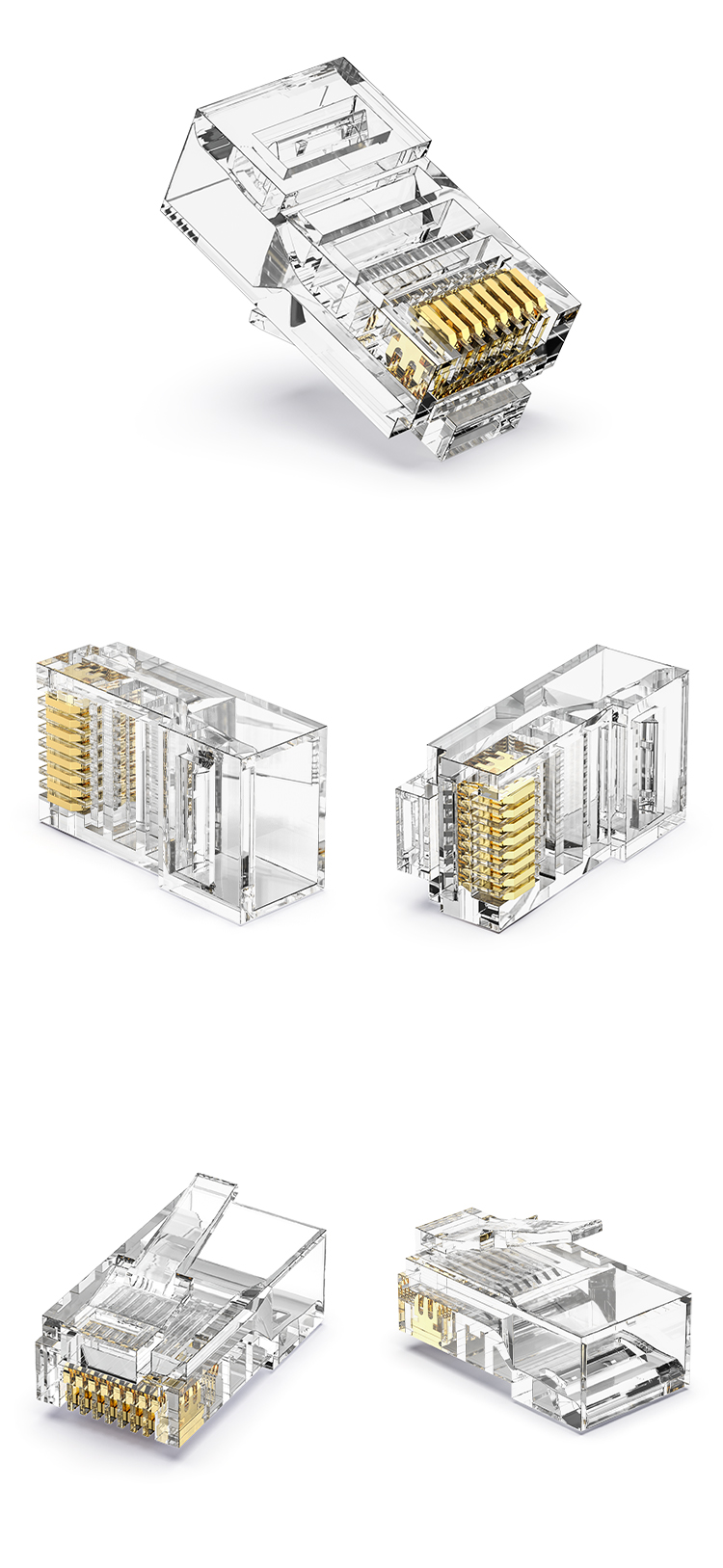

The CN-102M2 CAT5E RJ45 8P8C UTP Modular Plug is designed for reliable Ethernet cable termination in structured cabling systems. Featuring a square cable entry design, it is compatible with CAT6 snap-on strain relief boots, providing improved cable management and installation flexibility.
Built with brass 3-prong contacts and 1U gold plating, this connector delivers stable conductivity and dependable signal transmission for CAT5E networking applications. It supports conductor diameters from 0.75–1.0mm and is optimized for CAT5E 24AWG Ethernet cables.
With a durable PC housing, UL 94V-2 flame rating, operating temperatures from -40°C to +125°C, and a durability rating exceeding 2000 mating cycles, the CN-102M2 is ideal for LAN installations, telecommunications projects, security systems and OEM network connectivity solutions.
