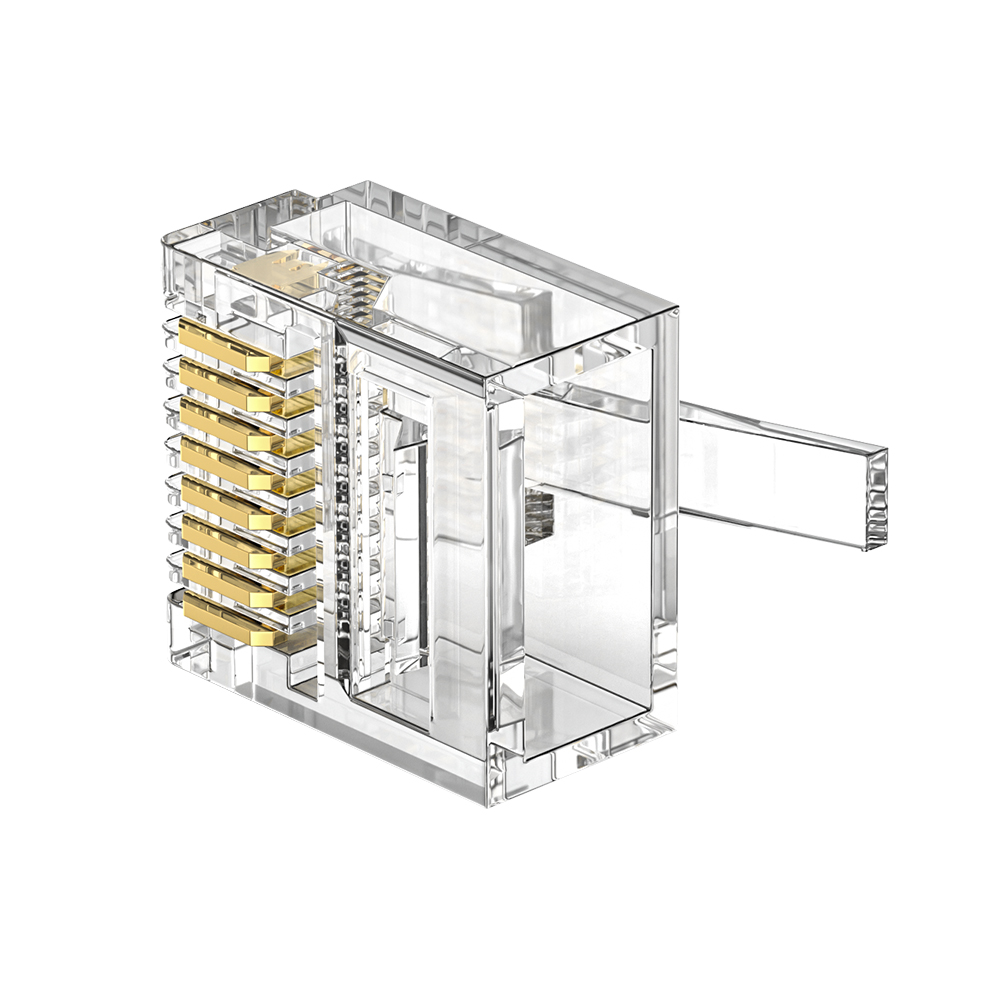

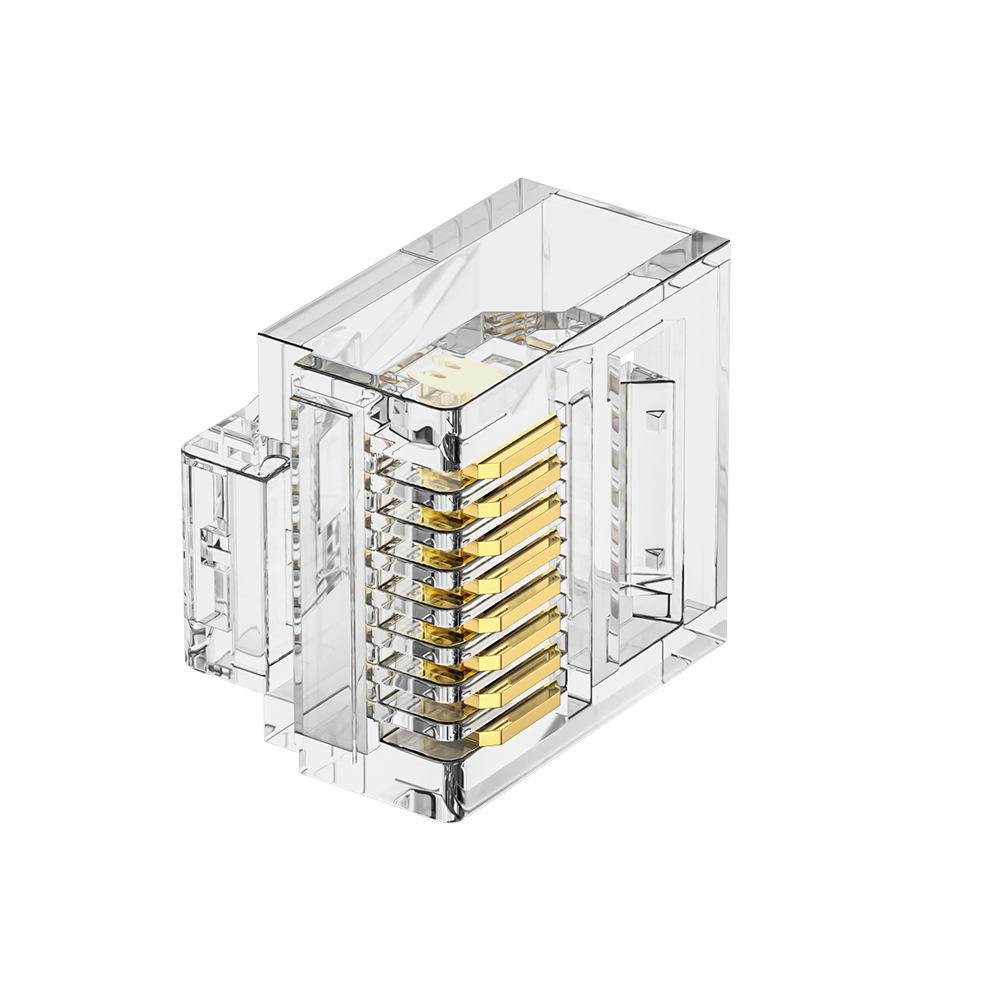

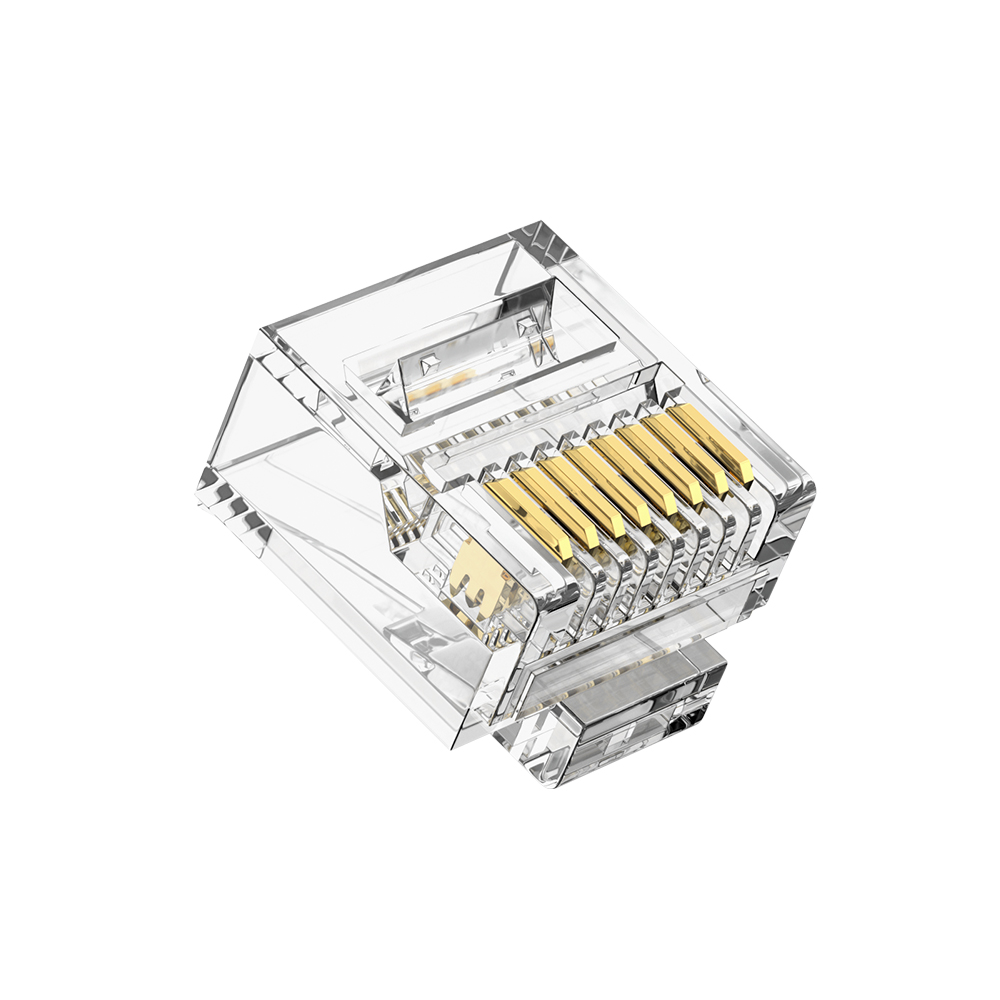

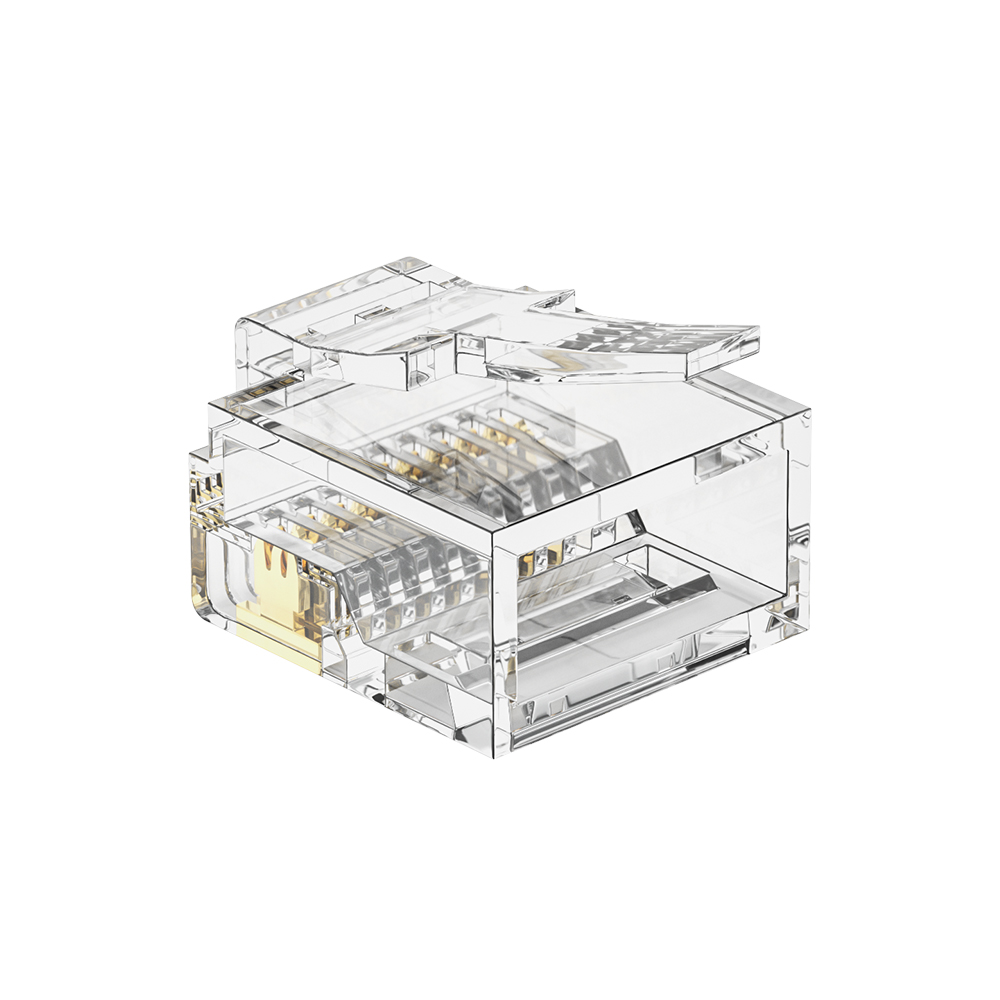

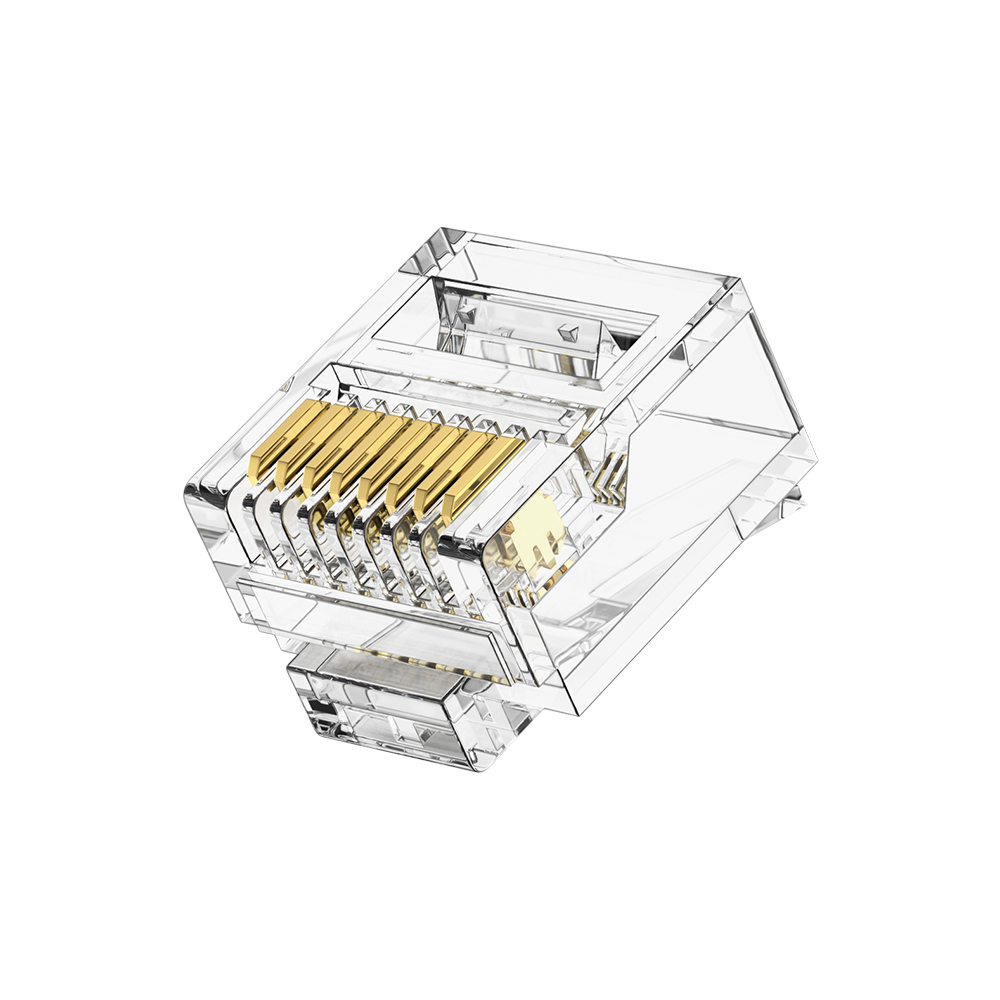

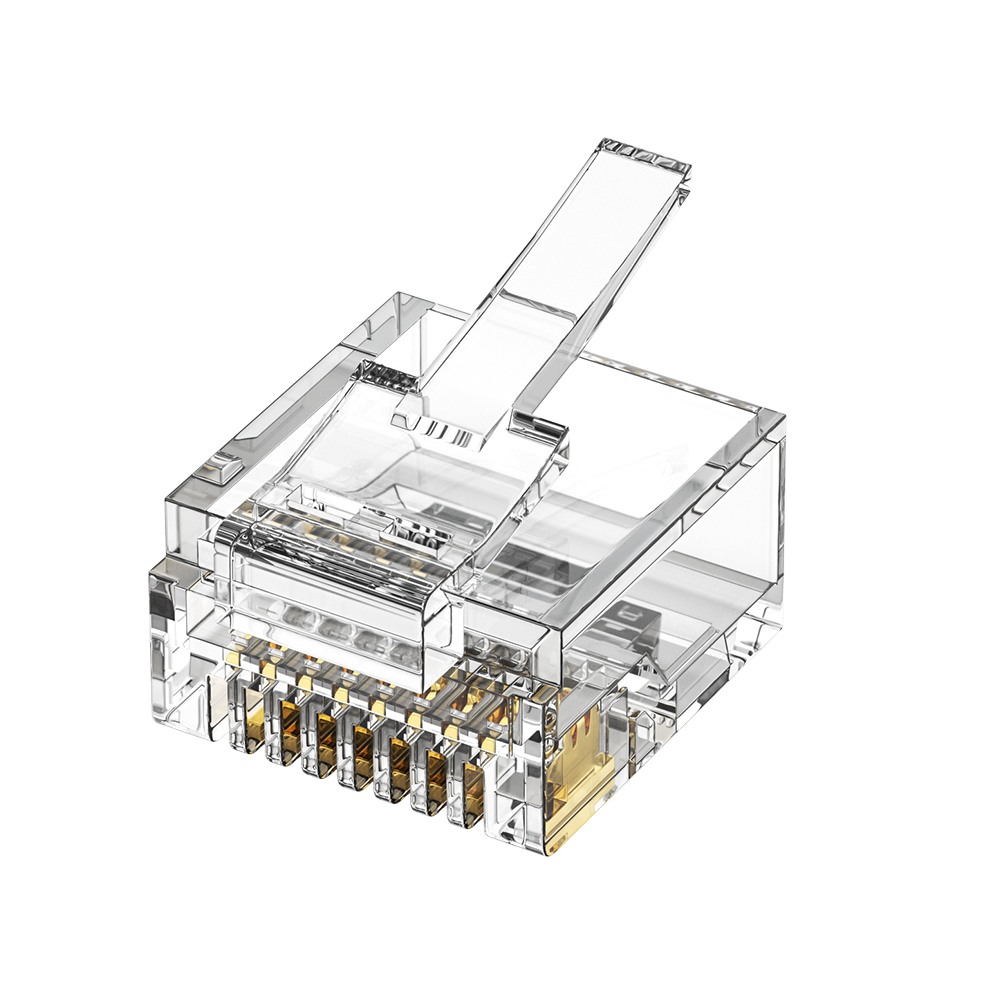

CAT5E RJ45 8P8C Short Body UTP Modular Plug 1U Gold Plated Connector for Flat Ethernet Cable

Name: CAT5E RJ45 8P8C Short Body UTP Modular Plug 1U Gold Plated Connector for Flat Ethernet Cable
Brand: JARED SUN
SKU: CN-102S1-2AB
Availability: InStock
Rating: 0 (0 reviews)

CAT5E RJ45 8P8C short body modular plug specially designed for flat Ethernet cables. Features 1U gold-plated brass 3-prong contacts and supports 0.75–1.0mm conductor diameter. Ideal for CAT5E flat network cable terminations with reliable connectivity and compact installation.

$0.00 USD

Quantity

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Item	Specification
SKU	CN-102S1-2AB
Product Name	CAT5E RJ45 8P8C Short Body UTP Modular Plug
Brand	OEM Supported
Connector Type	CAT5E RJ45 8P8C
Shielding Type	UTP
Design	Short Body Design for Flat Ethernet Cable
Contact Material	Brass 3-Prong Contact
Contact Plating	1U Gold Plated
Housing Material	PC
Flame Rating	UL 94V-2
Conductor Range	0.75–1.0mm
Compatible Cable	CAT5E Flat Ethernet Cable
Packaging Type	Bag / Box
Certifications	UL, CE, RoHS, ISO9001
Operating Temperature	-40°C to +125°C
IP Rating	IP20
Electrical Rating	250V AC, Max 2A
Withstand Voltage Test	<0.5A, 1000V DC / 1 Minute
Insulation Resistance	>500MΩ at 1000V DC / 1 Minute
Contact Resistance	≤20mΩ
Pull Test	≥89N (20 lbs) for 1 Minute
Durability Test	≥2000 Mating Cycles
Environmental Compliance	RoHS, REACH
Application	CAT5E Flat Ethernet Cable Networking
Overview	Short body CAT5E RJ45 modular plug specifically designed for flat Ethernet cables, providing compact installation and reliable network performance.

Product Description

The CN-102S1-2AB CAT5E RJ45 8P8C Short Body Modular Plug is specifically designed for CAT5E flat Ethernet cables. Its compact short body structure provides easier installation in limited spaces while maintaining reliable network connectivity and signal transmission.

Manufactured with brass 3-prong contacts and 1U gold plating, this connector delivers stable electrical performance and enhanced durability. It supports conductor diameters from 0.75–1.0mm and is optimized for flat network cable applications commonly used in office, residential and structured cabling systems.

With a durable PC housing, UL 94V-2 flame rating, IP20 protection and over 2000 mating cycles, the CN-102S1-2AB offers dependable performance for Ethernet networking projects, OEM applications and professional cable assembly requirements.
