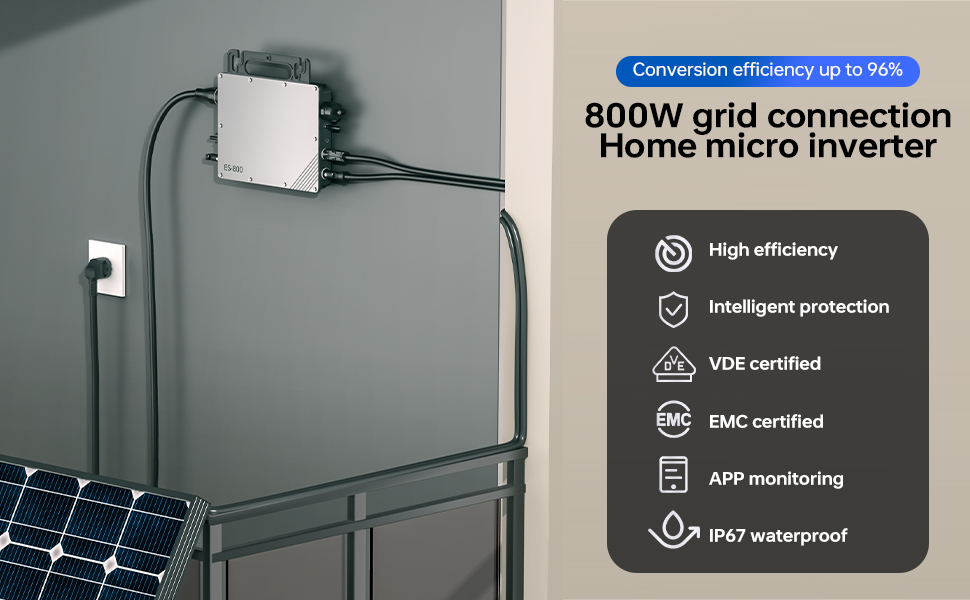

- 800W Mains Coupled Micro Inverter for Home Use with APP Monitoring, High Efficiency, Intelligent Protection, VDE/EMC Certification, IP67 Protection Class

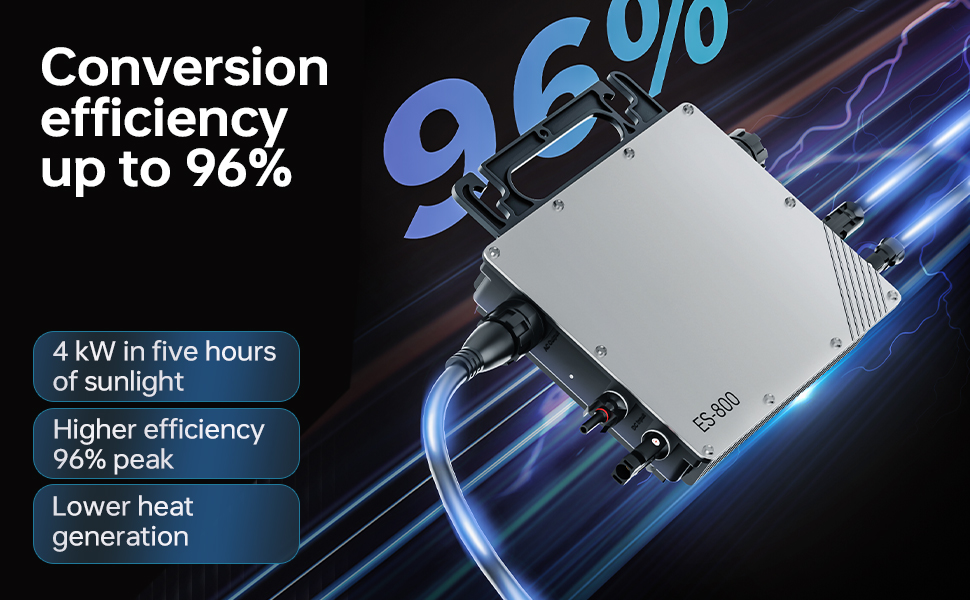

- High Efficiency: Two independent MPPT (400W*2) integrated, compatible with most photovoltaic panels, can be used with photovoltaic energy storage systems, conversion efficiency up to 96%, five hours of sunlight equivalent to 4kWh, significantly reduced heat generation, operating voltage 18-55V, maximum DC input current 14A*2

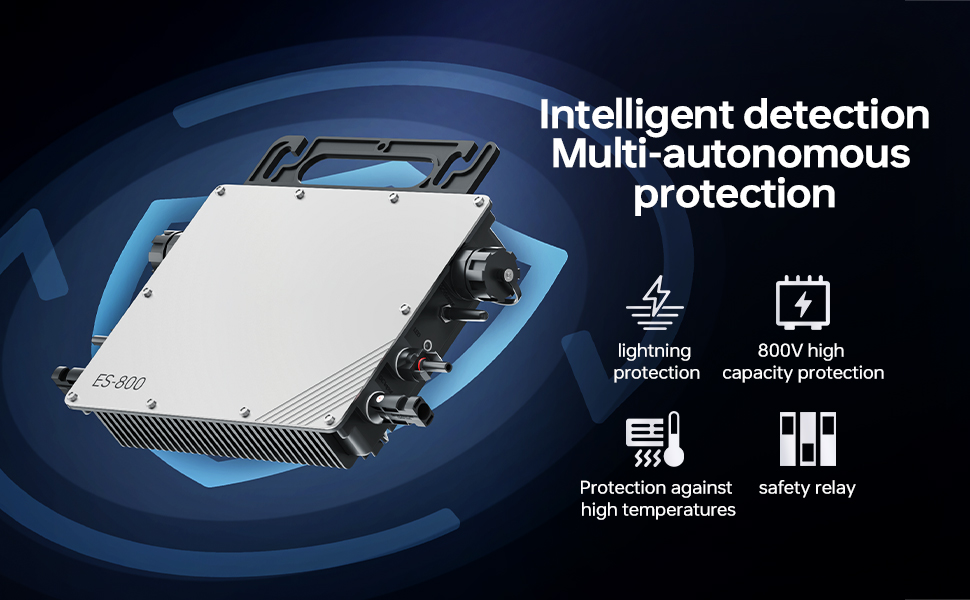

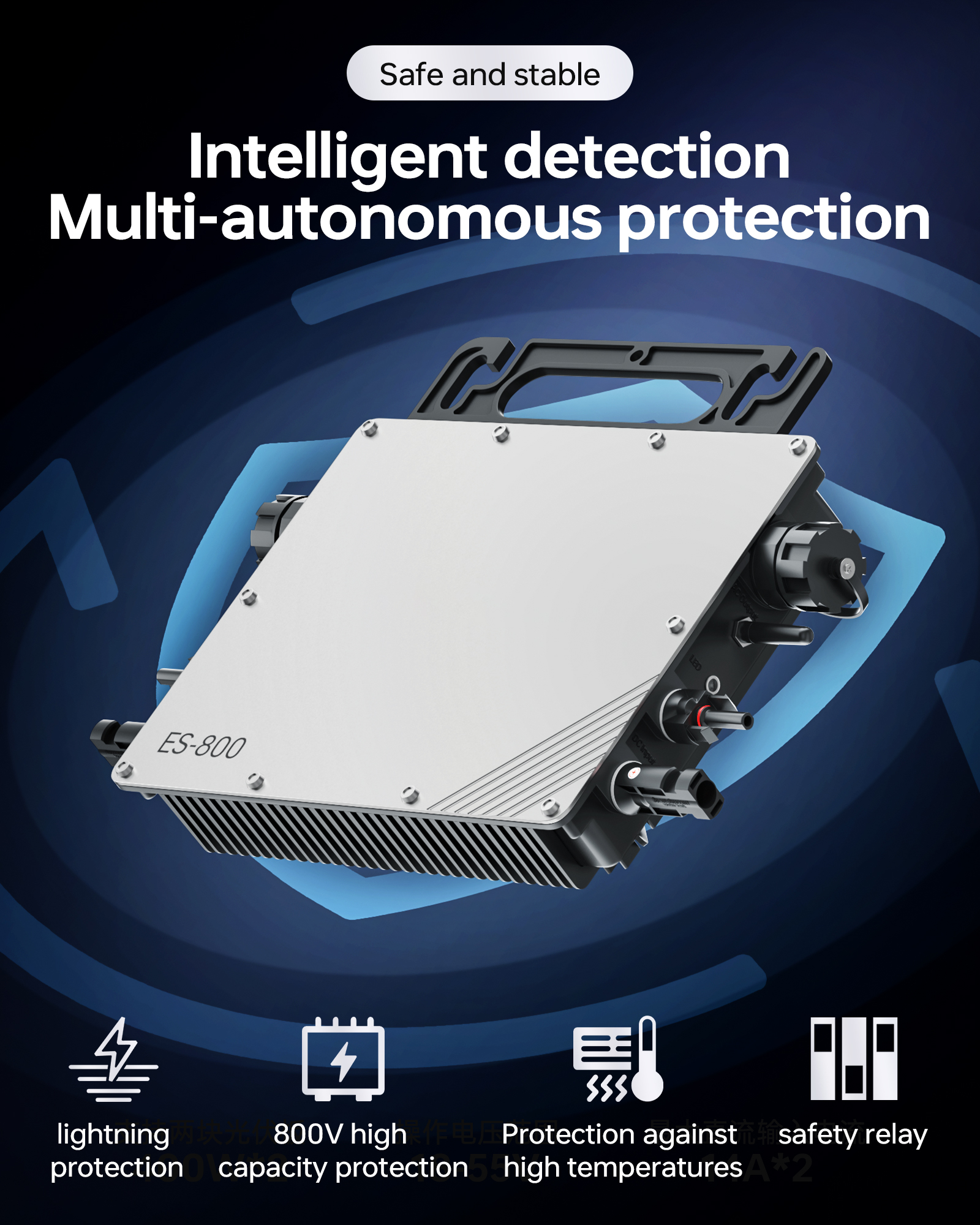

- Intelligent detection: multiple autonomous protection mechanisms for safe and stable operation, lightning protection, 800V super capacitor protection, over temperature protection, safety relay
- App real-time monitoring, plug and play: CEE 7/16 Euro plug, quick and easy operation, wind and rain proof, IP67 protection class. 5 metre power cable is included.

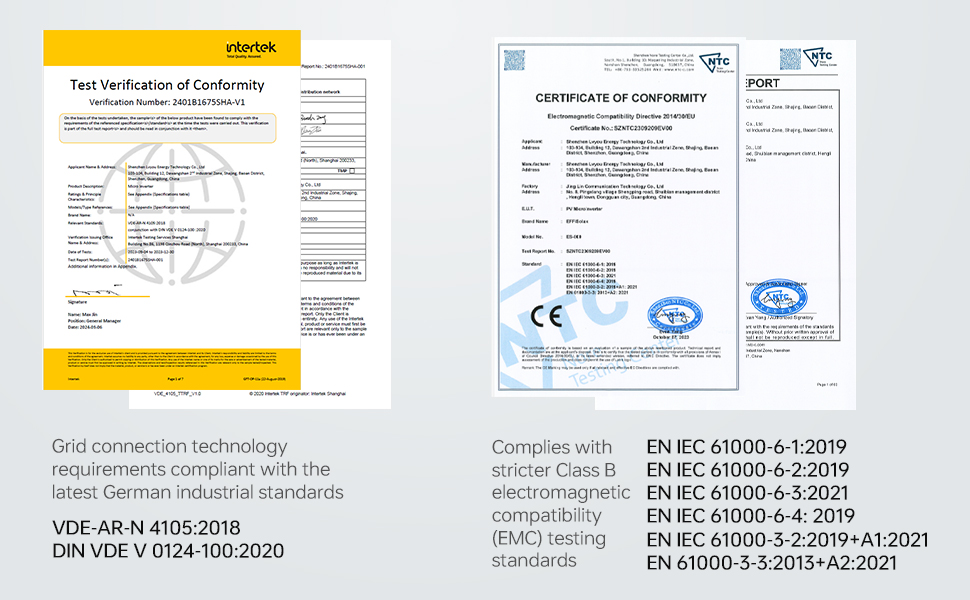

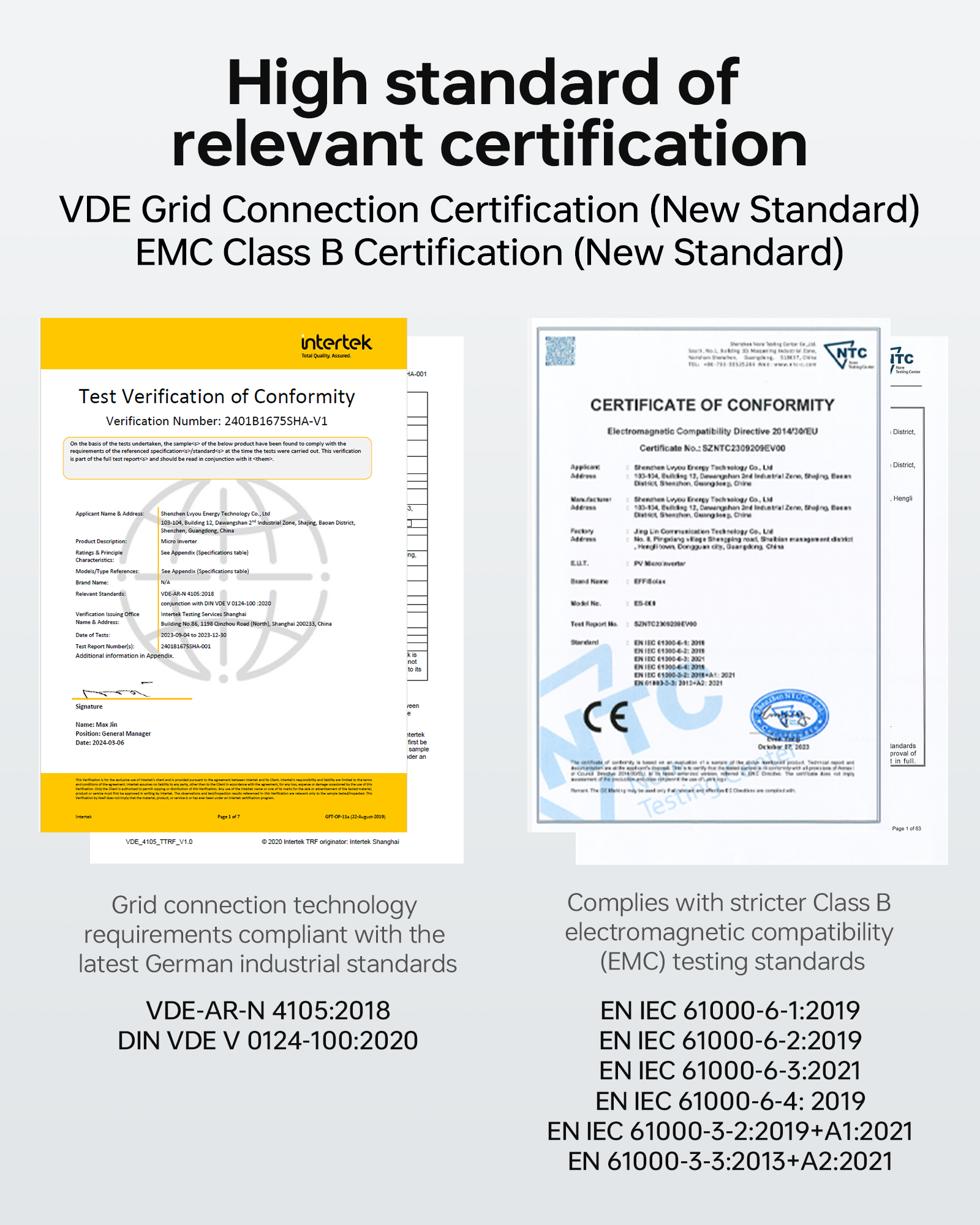

- VDE mains coupled certification according to new standard. The 800 W mentioned by us refer to the maximum generator power (peak power).
- Note: If after the 2025 system update in the app interface no power consumption data is displayed, please clear the app cache, uninstall the app and reinstall it. The data will then be displayed correctly. Thank you
- Please note: if the device shows a red light, please see the last main image in the link and make the required settings. This does not necessarily indicate a device error.
.jpg?w=970&h=600)
.jpg?w=970&h=600)
Product Parameters
Output data (AC).
| Maximum output power 800 W | Maximum number of connections 230 VAC: 10 sets |
| Rated output voltage 230 V | Total harmonic distortion <5% |
| Output Voltage Range 190-270 V | Power factor >0.99 |
| AC rated current 3.47 A | Peak efficiency 96% |
| Nominal output frequency 50 Hz | Protection class: Class 1 |
| Output Frequency Range 47.5 - 53.5 Hz |
Input Data (DC)
| Solar panel input power 275-530W*2 | Maximum DC input current 14 A x 2 |
| Max DC 60 V | Product Size 315*226*45mm |
| MPPT Tracking Area 16-60 V | Product weight 1.56 kg |
| MPPT Tracking Accuracy >99.5% |
Protection function
| Waterproof rating IP67 | Ambient height ≤2000 m: 10 Years |
| Operating ambient temperature -40°C to +65°C | Over/Under Voltage Protection Yes |
| View Operating status LED | Over/Under Frequency Protection Yes |
| Communication connection Wi-Fi / 2.4G | Protection against island formation Yes |
| Cooling Method Natural cooling (no fan) | Protection against overtemperatures Yes |
| Operating Environment Indoor/Outdoor |
.jpg?w=970&h=600)

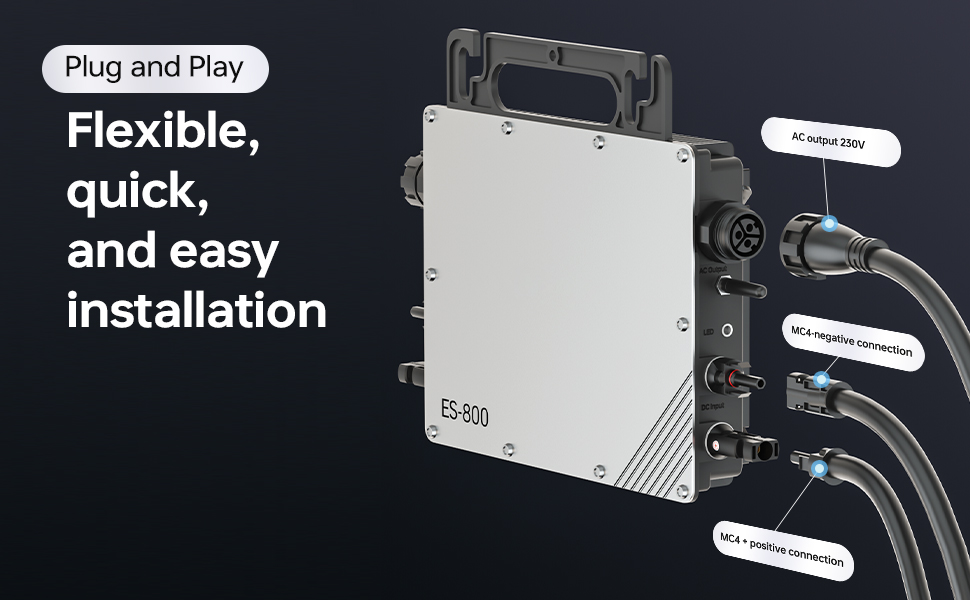

Plug and play
| Flexible, quick and easy installation | AC output: 230 V | EFFISolax | MC4 negative connector | ES-800 | MC4+ positive connector |
.jpg?w=970&h=600)

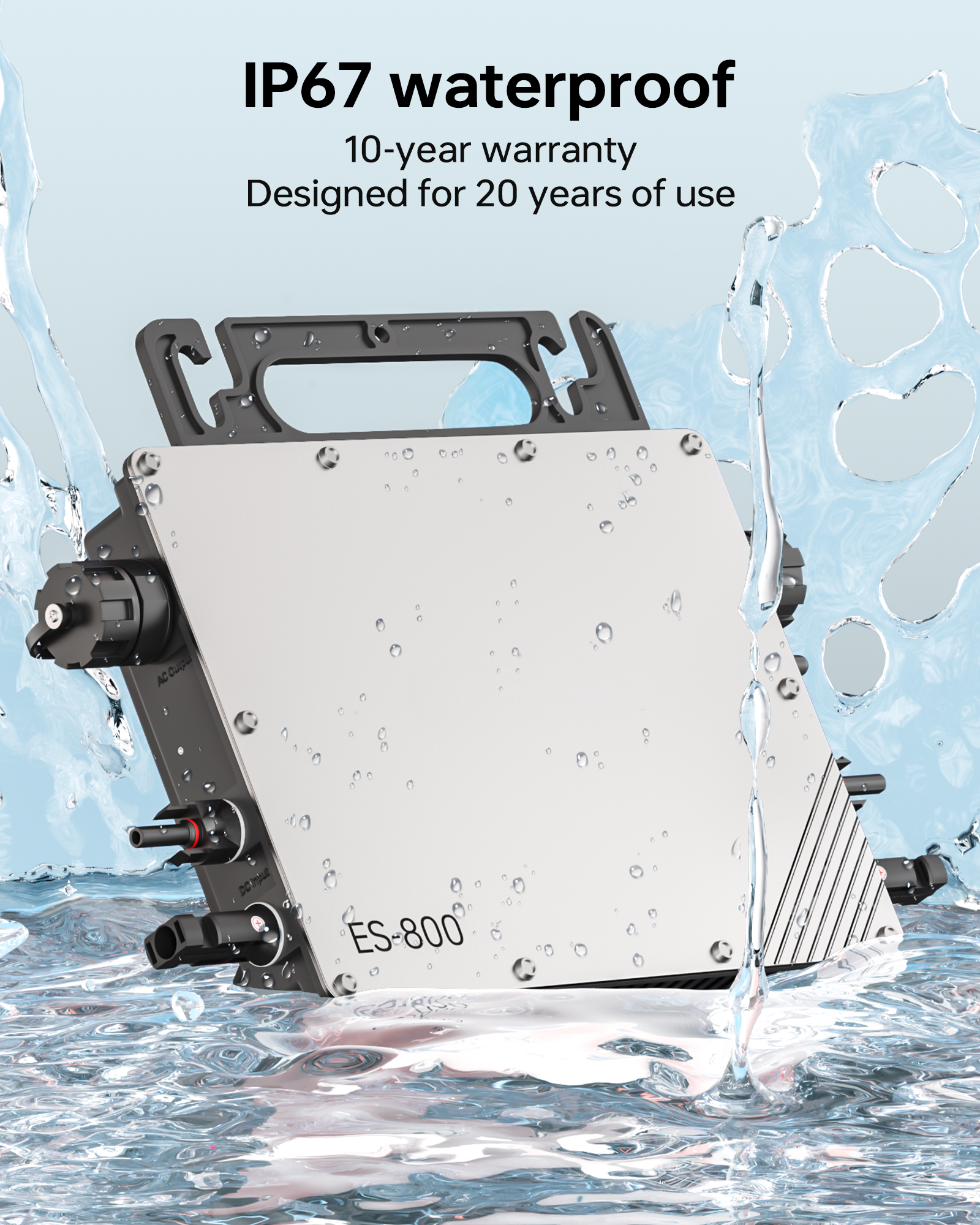

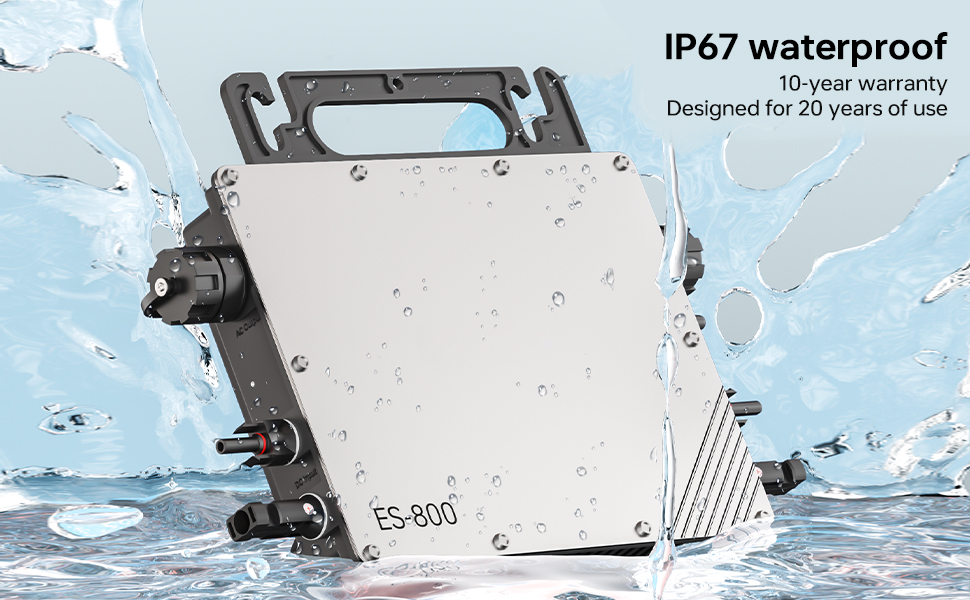

IP67 waterproof
| 10 years. Designed for 20 years of use | EFFISolax ES-800 |
.jpg?w=970&h=600)

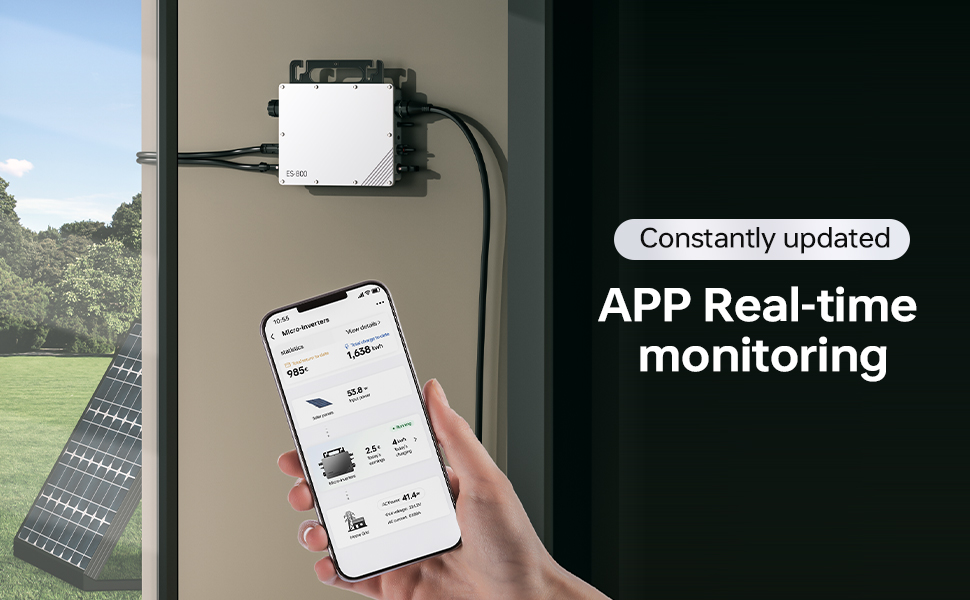

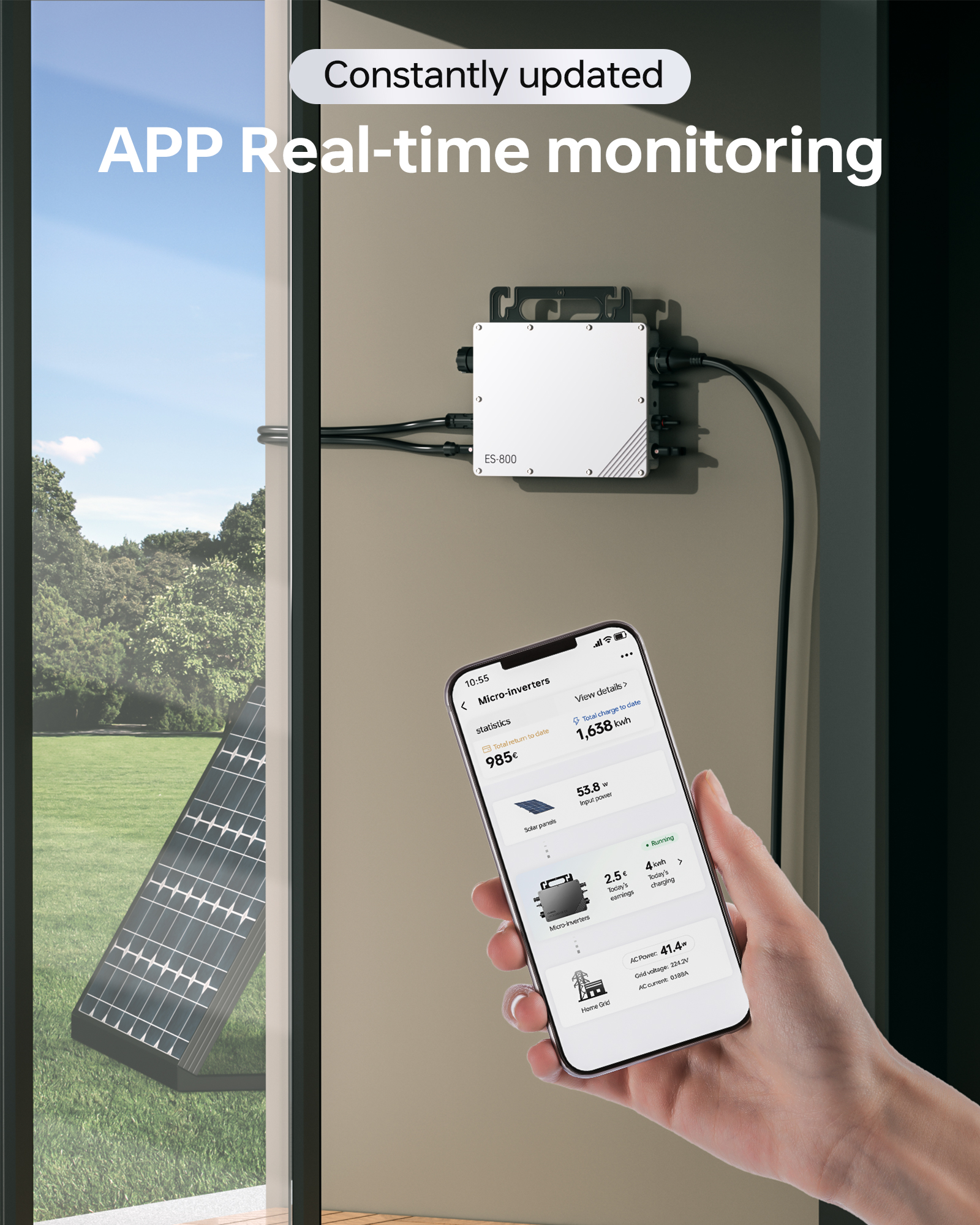

App real-time monitoring

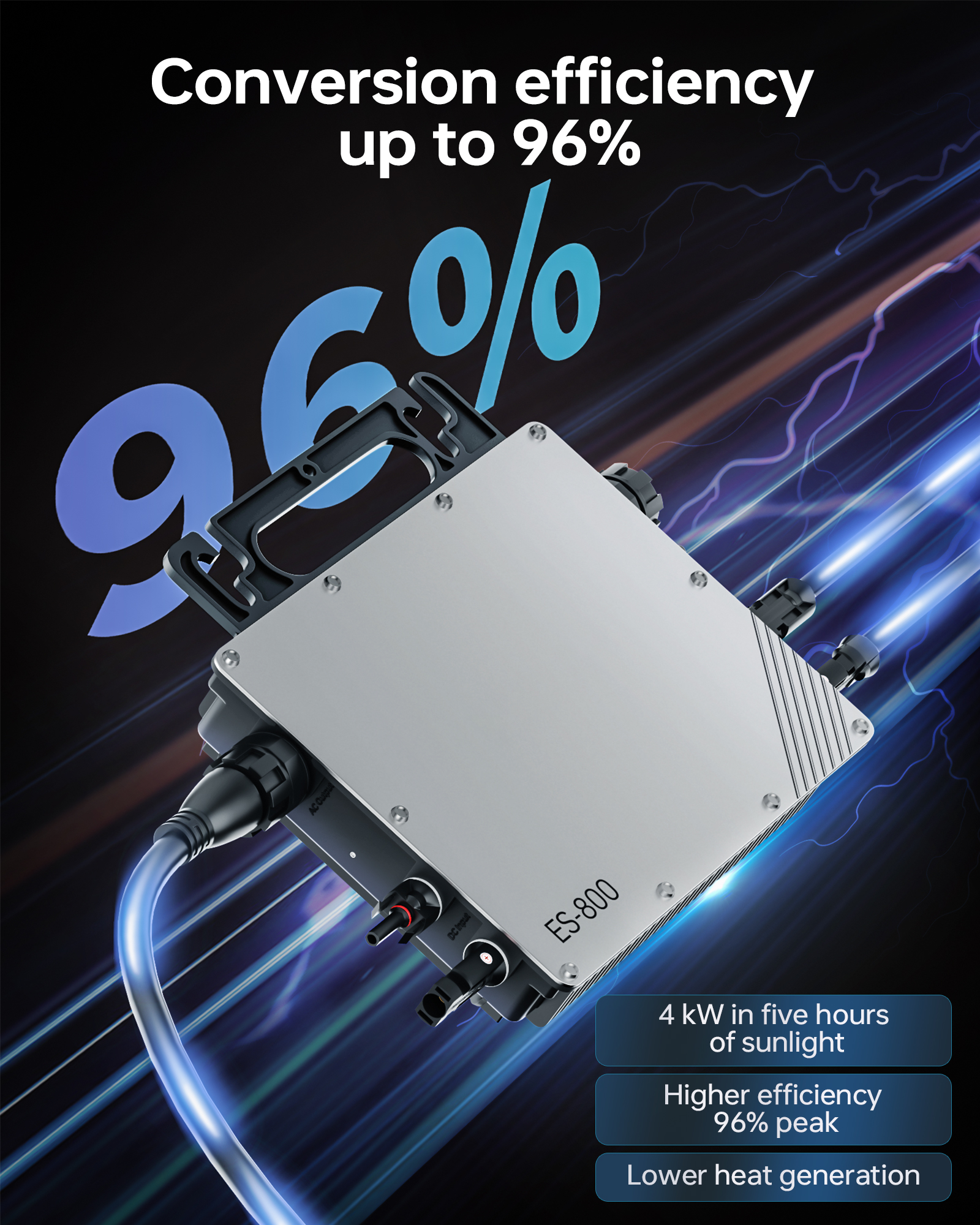

| Conversion efficiency up to 96% | home micro inverter | High efficiency | Smart Protection |
