Product Description

Upgrade your smart home experience with this 10.1" Smart Home Control Panel, designed as a centralized control hub for modern automation systems. Featuring a high-definition multi-touch display and Android operating system, it allows seamless control of lighting, curtains, HVAC, security systems, and more from a single interface.

With built-in Zigbee gateway, WiFi, and Bluetooth connectivity, the panel supports integration with multiple smart home ecosystems and can manage over 100 connected devices. It enables users to create customized automation scenes, improving convenience, energy efficiency, and overall smart living experience.

The panel is equipped with advanced sensors including light, temperature, and humidity detection, enabling intelligent automation based on environmental conditions. A built-in microphone array and speakers allow for enhanced interaction and voice-based control, making it a true smart home command center.

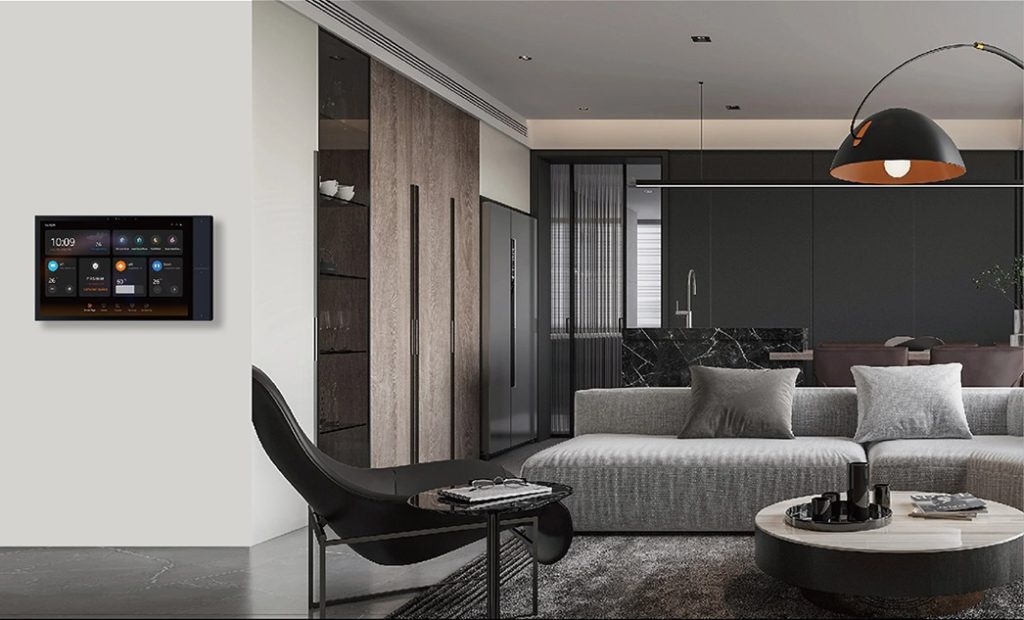

Designed for wall-mounted installation, this control panel offers a clean and modern look suitable for homes, villas, hotels, and commercial buildings. Its stable performance and multi-protocol compatibility make it ideal for professional smart home integration projects.

Key Features

• 10.1" HD Touch Screen with responsive multi-touch control
• Built-in Zigbee Gateway for centralized smart device management
• Multi-Protocol Connectivity including WiFi, Bluetooth, and Zigbee
• Android System for flexible app integration and customization
• Control 100+ Devices including lighting, curtains, HVAC, and more
• Smart Sensors including light, temperature, and humidity detection
• Voice Interaction with microphone array and built-in speakers
• Wall-Mounted Design for clean and modern installation
• Ideal for Smart Homes, Villas, Hotels, and Building Automation

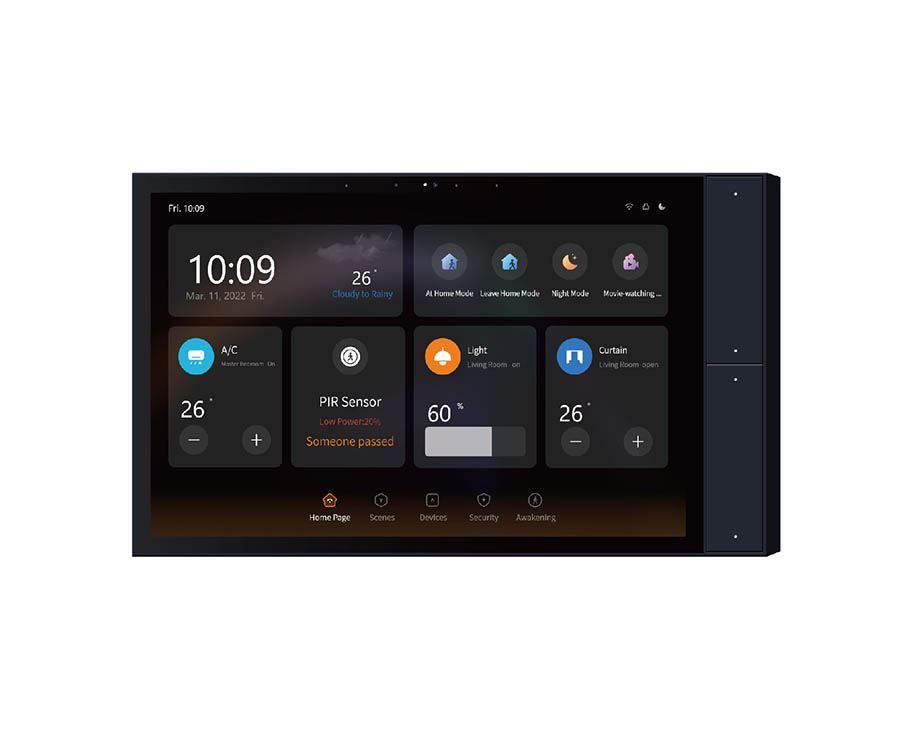

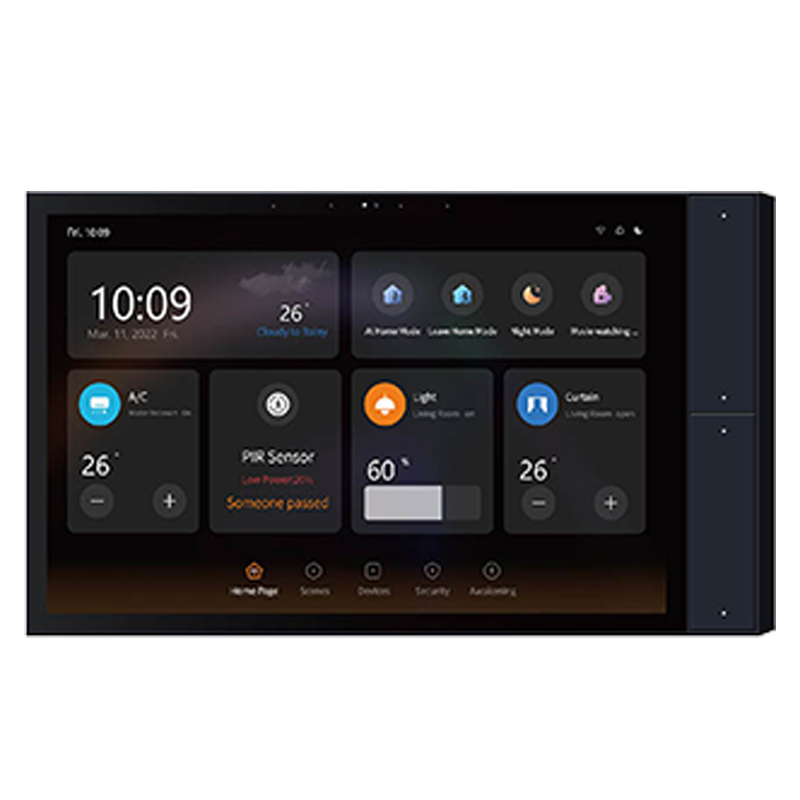

S9E 10.1” Smart Home Automation Control Touch Panel

S9E 10.1” Smart Home Automation Control Touch Panel with Wifi Zigbee Gateway for Scenes Control, built-in quadruple array microphones, 4 ohm 2W*2 Mono speakers, light sensor, proximity sensor, temperature & humidity sensor.

S9E smart touch screen controller can be widely used in Smart Home, Smart Villas, Smart Buildings, Smart Campus, Smart Hospitality, Smart Agricultural Irrigation Systems

Features

• Supports WiFi and LAN for network connections, ZigBee 3.0 gateway, 100+ sub-devices control and Alexa voice control
• Supports local musics or apps upload and play, can also connect to external Bluetooth speakers/amplifilers

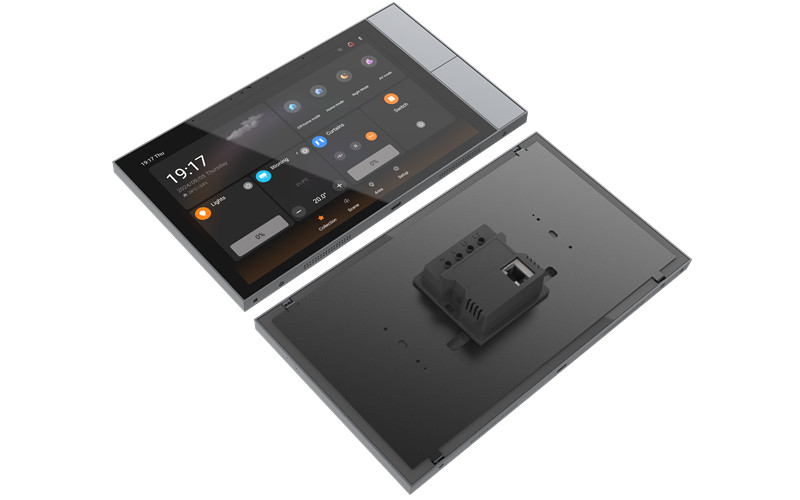

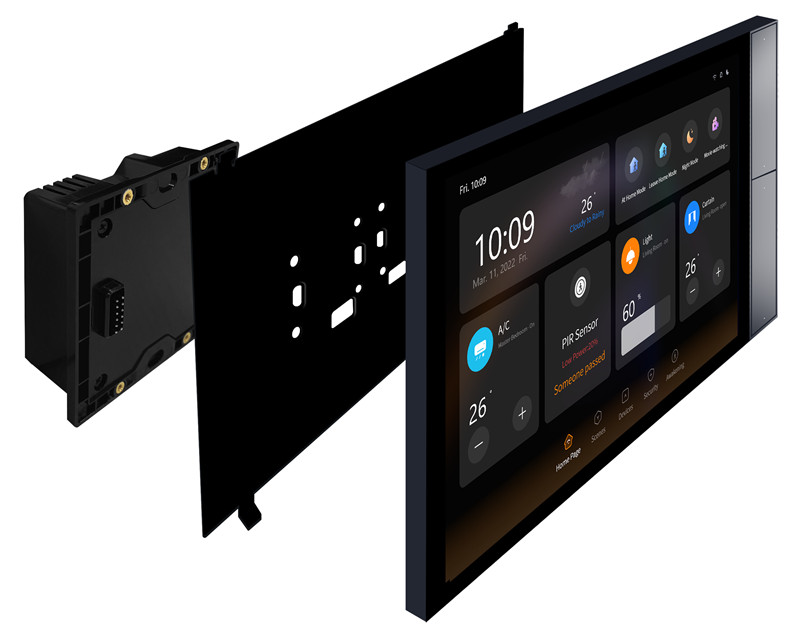

• Fits Asian bigger wall boxes, simple in wall installation.
• 2-gang relay switch, supports wired connections for lights, fans,etc.
• Configure smart home scenes in the APP, turn on/off the scene mode with one touch on the screen.

Specifications

10.1 Inch Multi-functional Smart Control Panel(Asian Back base + Android 11)

1.) RK3566B Quad core Cortex-A55 CPU
2.) 2GB RAM + 16GB ROM
3.) WiFi + Bluetooth + Zigbee network protocols
4.) Android 11 (With Tuya Zigbee)
5.) 1920 1200 Multi Touch Screen with G+FF crafted and fingerprint-proof feature
6.) Built-in quadruple array microphones, 2W2 Mono speakers, light sensor, millimeter-wave radar sensor and temperature & humidity sensor.

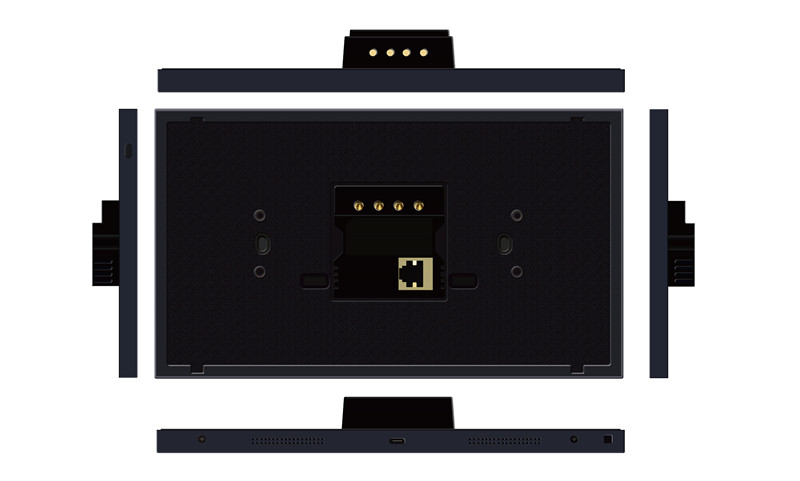

Dimensions

1.) Dimension 27215511.5mm (without the back base)
2.) Dimension 27215538mm (with the back base)
3.) Back base dimension 686826.25mm
4.) Bolt hole spacing 60mm

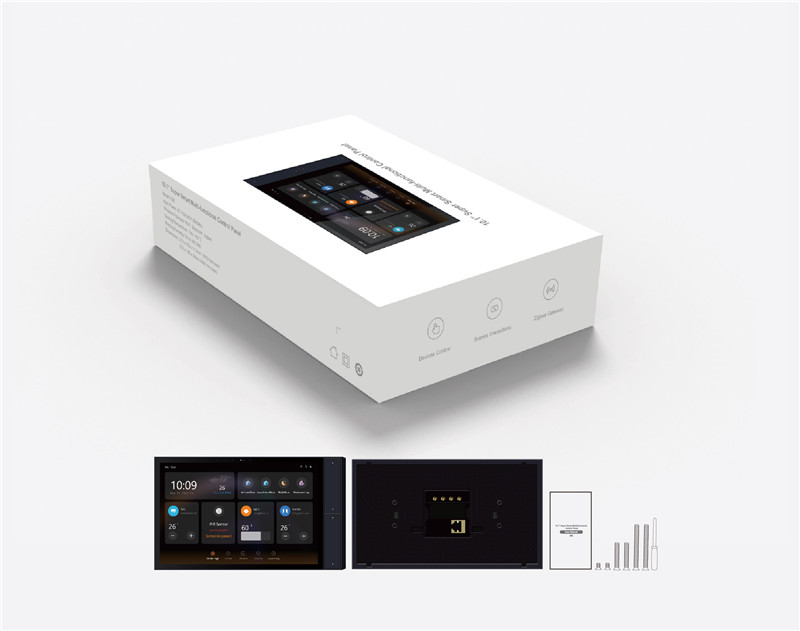

Packing Details

Product net weight: 950g

With Neutral Package: 5pcs/Carton

N.W.: 4.75KGS
G.W.: 6.80KGS

Carton Size: 375365265mm

Support languages:
English, Chinese, Russian, Vietnamese

Supported Devices

The S9E smart control panel supports a wide range of smart home devices, including:

Control Switches
Dimmers
Scene Switches
Sockets
Lightings
Curtains
Air Conditioners
Smart Locks
Door Magnetics
Thermostats
Fresh Air Ventilators
PIRs
Water Leakage Sensors
Temperature & Humidity Sensors
Smoke Alarm Sensors

Video Series
(IPC / Security Peephole Viewers / Video Door phone)

On-off Controllers
Aromatherapy Devices
Humidifier
Air Purifiers
Water Heaters
